H-M Immersion Resistant Solder Sleeve | 0.050 – 0.170in, 150°C


SUMITOMO

EDMO#: H-M-3

MFR#: H-M-3

Description

H-M-series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

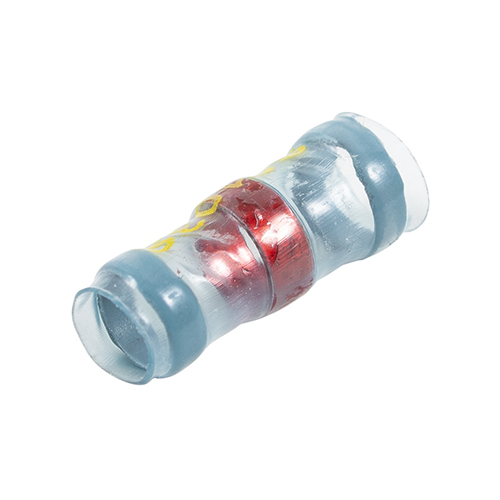

This H-M solder sleeve terminal (EDMO# H-M-3) fits wire diameters of 0.050 – 0.170 inch (øD4). No lead or braid. *see Datasheet

Features

  • Mil-Spec. AS83519/1 Qualified
  • Immersion Resistant
  • 150°C Operating Temperature
  • 183°C Solder Melt Temperature
  • Convection or infrared heated installation
  • Sn63 (RMA flux)

Specifications

Cable Size:
ØD4: 0.050 – 0.170 in (see datasheet)

Operating Temperature:
-55°C to 150°C

Solder Melt Temperature:
183°C

Solder Type:
Sn63 (63% tin ,37% lead)

Temperature Indicating Paint (TI):
yes

Jacket Type:
Kynar

Lead Wire Include:
No

Braid Included:
No

Environmental Seals:
Yes

RoHS Compliant:
No

Flux:
RMA

Product Codes

Mfr Part No :

H-M-3

MIL SPEC :

M83519/1-3

ECCN :

EAR99

MIL SPEC :

M83519/1-3

NSN :

5940-01-135-7077

SAE :

AS83519/1-3

SCHEDULE B CODE :

8536695050

Documentation
