Multi-GNSS Passive High Performance Antenna | N Connectors

Product Description

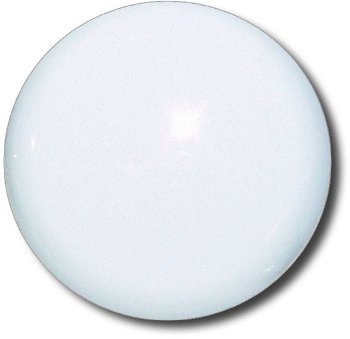

This passive GPS antenna provides coverage for all the L1/L2/L5 Galileo/Glonass Omnistar frequency bands and is designed to meet AAR environmental standards. It features a multi-stacked patch design covering global GNSS frequencies. This GPS antenna is designed  for application where the active electronics are collocated with the receiver as well as for re-radiating GNSS applications. It is hermetically sealed and AAR tested and approved.

This GPS antenna (EDMO# L1L2GRRKPA) has a N connector.

Specifications

• Weight:
  7.4 oz (210 g)
• Dimensions:
  3 x 1.4 in (diameter x height)
• Environmental Rating:
  AAR Compliant
• IP Rating:
  IP 67
• Frequency:
  1,500 GHz — 1,615 GHz
• Axial Ratio:
  2.5 dB, max.
• Peak Gain:
  3 dBic, min.
• GPS L1 Bandwidth:
  115 MHz, Typical
• GPS L2/L5 Bandwidth:
  140 MHz, Typical
• Input SWR:
  2.0:1, typical
• Characteristic Impedance:
  50Ω
• Connector Option:
  N type

Product Codes

• Mfr Part No
  L1/L2GRRKPA-N
