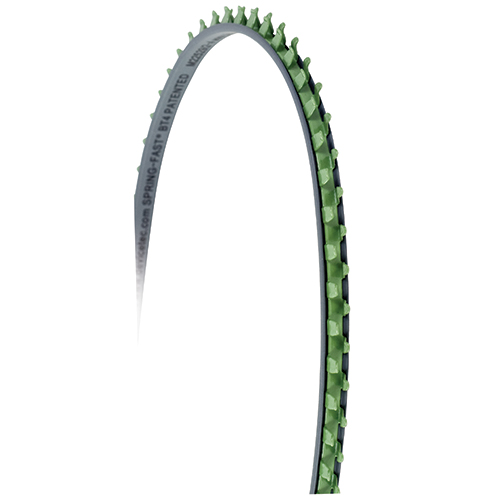

NASM2259/2 Mil-Spec Composite Grommet Edging | Fits 0.070 – 0.093 inch panels
Product Description
Spring-Fast Mil-Spec composite grommet edging is designed for the high performance needs of the defense industry for use on airframes, tactical vehicles & ground based electronics. Grommet Edging is FAA Approved and installs in seconds allowing for immediate wire routing — no adhesive curing, clean up, or inspections. The NASM2259/2 series features an abrasion resistant subsurface and a polymer cushion to provided a soft surface for protecting wires and cables.
Features
This NASM2259/2 Mil-Spec grommet edging (EDMO# M/2-4R-25):
- Fits panels 0.070 in – 0.093 in
- Width: 0.24 inches
- Comes on a 25 foot roll (7.6 m)
Features:
- Meets military specifications
- FAA Approved
- Continuous heat up to 185°F (85°C)
- Temperature operation as low as -40°F (-40°C)
- High Corrosion Resistance
- UL94 V-0 flammability rating
- High shock and vibration resistance to RMS G 41.7
- Superior dielectric strength
- Continuous edge protection for 90° inside and outside corners
- Continuous edge protection on inside and outside radius of any size
Specifications
Sheet Thickness:
0.070 - 0.093 in (1.80 - 2.40 mm)
Width:
0.24 in (6.10 mm)
Length:
25 ft roll (7.6 m)
Axis Conformity:
2
Vicat Softening Point per ASTM D01525 Rate B:
Thermoplastic Elastomer Cushion
Operating Temperature:
-40°F to 185°F (-40°C to 85°C)
Dielectric Strength:
1,500 volt @ 60 Hz
Substrate:
Type 304 Stainless Steel
Taber Abrasion Resistance:
TPE Cushion Per D1044 1 kg load, C17 wheel 25 mg 1,000 cycles
Finish:
Epoxy
Color:Lime green FED STD 595
Color Number: 14553
Salt Spray Hours:
2,000 hr, ASTM B117.MIL-STD-202, Method 301
Immersion:
Per NASM22529 and Skydrol Compatible
Random Shock & Vibration:
MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J
Duration 8 hr longitudinal and 8 hr perpendicular. rms 41.7
Flammability:
UL94V-0 - File No. E113553 NZMT2
MIL-STD-202F, Method 111A
FAR 25.853 Telcordia GR63 Core
Product Codes
- Mfr Part No:04-M22529/2-4R-25
- EDMO #:M/2-4R-25
- Brand:DEVICE TECHNOLOGIES
- Category:Wire, Cable & Accessories
- ECCN:EAR99
- MIL SPEC:M22529/2-4R-25
- MIL SPEC:M22529/2-4R-25
- MIL SPEC:M22529/2-4R-25
- SCHEDULE B CODE:7326.90.8595
