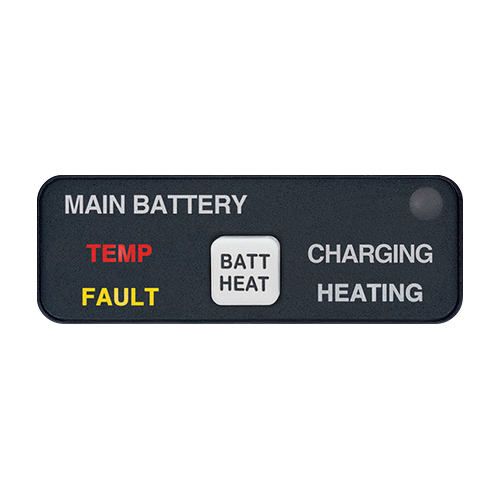

MD41 Series Annunciation Control Unit | For TB17 Aircraft Battery

MD41 Series Annunciation Control Unit | For TB17 Aircraft Battery

MID-CONTINENT INSTRUMENTS AND AVIONICS

Call For Pricing
Available to order
EDMO # MD41-1817
MFR Part # MD41-1817
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Receive accurate battery status information to the cockpit with the MD41-1817 Annunciation Control Unit (ACU). The battery ACU interfaces with True Blue Power TB17 lithium-ion aircraft batteries, is designed to be clearly visible in daylight, and features external dimming adjustments for balancing low-level light conditions.

Features

  • 28 VDC, 0.20 Amps max power input
  • Long-life LEDs used for all lighting
  • Internally backlit selection switch
  • Daylight readable, deadfront inactive annunciations and automatic dimming
  • External dimming adjustment provided for balancing low-level light conditions

Specifications

  • Weight:
    0.26 lbs (0.12 kg)
  • Power Input:
    28 VDC, 0.20A max
  • Lighting:
    28 VDC input LEDs
  • Dimming:
    Automatic
  • Temperature:
    -55°C to 70°C (-67°F to 158°F)
  • Altitude:
    55,000 feet
  • Connector:
    MCI P/N 7014517
  • Mounting:
    Rear instrument panel mount

Related Products

Product Codes

  • Mfr Part No
    MD41-1817
