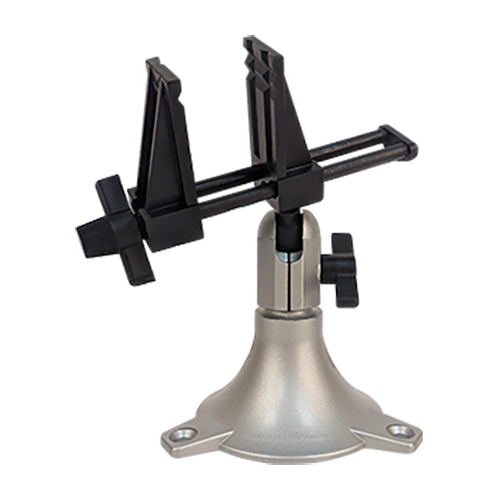

PanaVise Jr. Mini Tabletop Vice | 210° Tilt, 360° Turn, 360° Rotation

PanaVise Jr. Mini Tabletop Vice | 210° Tilt, 360° Turn, 360° Rotation

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL201
MFR Part # 201
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

All PanaVise vises and work holding tools have a "lifetime warranty". This AMAZING Mini-Vise (EDMO# MODEL201) is perfect for arts and crafts, model making, electronics and other small projects! The patented "split ball" allows the head to tilt, turn and rotate and position your work anywhere you want it.

Features

  • Easy-to-use single knob controls head movement through 3-planes: 210° Tilt, 360° Turn, & 360° Rotation
  • Adjusting knob controls jaw pressure for delicate work
  • Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic
  • Neoprene jaw pads are available for holding extremely delicate items
  • Base features 4.3125 in (109.5mm) bolt circle countersunk for three 1/4 in (6.3mm) flat-head screws (not included)
  • Compatible with all PanaVise Base Mounts

Specifications

  • Weight:
    1.2 lbs (0.6 kg)
  • Height:
    6.75 in (173mm)
  • Jaw Height:
    2 in (50.8mm)
  • Jaw Width:
    1 in (25.4mm)
  • Jaw Opening:
    2.875 in (73mm)
  • Continuous Heat Tolerance:
    350°F (177°C)
  • Intermittent Heat Tolerance:
    450°F (204°C)

Product Codes

  • Mfr Part No
    201
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
