PanaVise Multi-Purpose Work Center | 90° Tilt, 360° Turn, 360° Rotation

PanaVise Multi-Purpose Work Center | 90° Tilt, 360° Turn, 360° Rotation

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL350
MFR Part # 350
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

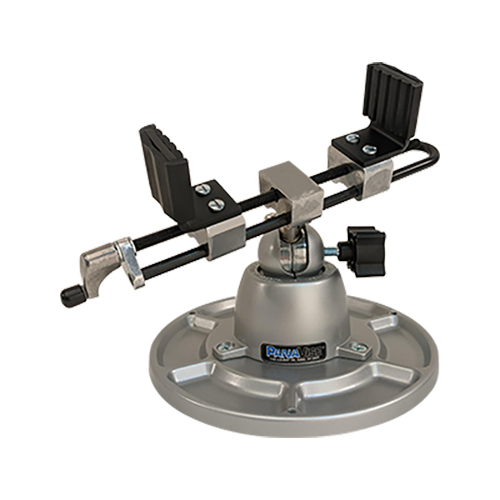

All PanaVise vises and work holding tools have a "lifetime warranty" and the 300 series vises have interchangeable components. You can easily add a Base Mount or another Head. The Multi-Purpose Work Center (EDMO# MODEL350) is a versatile combination designed for holding larger heavier objects, and consists of the self-centering, extra wide opening head, the standard base, and the parts tray base mount. It's an exceptional choice for any workbench!

Features

  • Self-centering, extra-wide opening jaws hold heavier objects by centering the weight over base
  • Parts Tray Base Mount adds stability and has six individual trays to neatly hold small parts and tools. Includes six non-marring, anti-skid pads
  • Ribbed, neoprene jaw pads provide a sure grip; reverse the pads and the wide "V" holds cylindrical objects
  • Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
  • "Double-action" jaws open/close quickly. Can be reversed to provide zero closure

Specifications

  • Overall Weight:
    5.0 lbs (2.3 kg) Overall Height: 7.875 in (200 mm)
  • Base Weight:
    1.4 lbs (0.6 kg)
  • Base Height:
    3.75 in (95.2 mm)
  • Base Mount Weight:
    1.9 lbs (0.9 kg)
  • Base Mount Dimensions:
    0.75 x 8.5 in (19.1 x 215.9 mm)
  • Head Weight:
    1.9 lbs (0.9 kg)
  • Head Height:
    5.25 in (133.3 mm)
  • Head Length:
    11.5 in (292.1 mm)
  • Jaw Height:
    1.875 in (47.6mm)
  • Jaw Width:
    1.5 in (38.1 mm)
  • Jaw Opening:
    9 in (228.6 mm)
