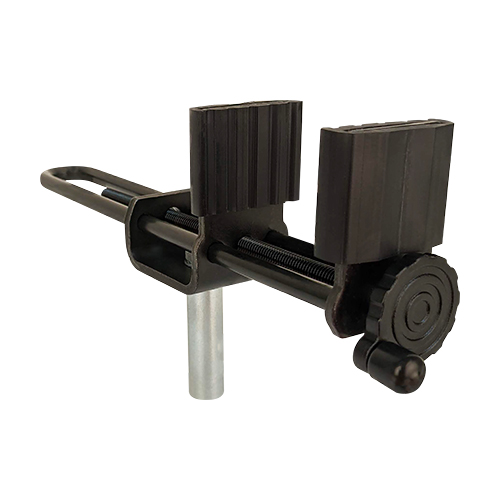

PanaVise Wide Opening Head

PanaVise Wide Opening Head

PANAVISE PRODUCTS

Call For Pricing
Available to order
EDMO # MODEL366
MFR Part # MODEL366
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Create a custom work holding tool for your specific needs with the PanaVise system of interchangeable Heads, Bases and Base Mounts. All PanaVise Bases include the patented "split ball" which allows a Head to be positioned through three planes (90° Tilt, 360° Turn & 360° Rotation). All 300 series Bases accept all 300 series Heads. A variety of Base Mounts adds dozens of useful options.

This wide opening head (EDMO# MODEL366) has jaw pads that gently, yet firmly, hold a wide variety of objects including circuit boards, coils, and tuners. The jaws open a generous 6 in.

Features

  • Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects
  • Reverse the pads and the wide "V" holds delicate cylindrical objects
  • Remove jaw pads from steel jaws when working with high heat
  • Black oxide coating reduces glare and promotes eye comfort
  • Compatible with all 300 series Bases

Specifications

  • Weight:
    1.6 lbs (0.7 kg)
  • Height:
    5.125 in (130.2 mm)
  • Head Length:
    11 in (279.4 mm)
  • Jaw Pad Dimensions:
    1.875 x 1.5 in (47.6 x 38.1 mm)
  • Jaw Opening:
    6 in (152.4 mm) with pads, 6.25 in (158.8 mm) without pads.

Related Products

Product Codes

  • Mfr Part No
    MODEL366
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8203.20.6060
