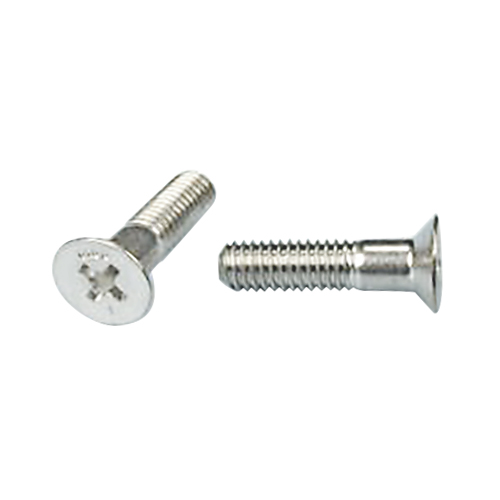

MS24694C7 Phillips Countersunk Screw | 0.688 in. Length, 8-32 Threads

BILD INDUSTRIES

Call For Pricing

Available to order

EDMO # MS24694C7

MFR Part # MS24694C7

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

MS24694-C Series countersunk screws feature a 100 degree flat head and are made of a stainless steel material that has been heat treated providing additional hardness.

This Phillips head countersunk screw (EDMO# MS24694C7) has a length of 0.688-inch and a 8-32 thread size.

Features

CRES steel material per FED-STD-66 (300 SERIES)
Heat treated alloy steel with hardness C26 – C32
Alloy steel finish, CAD PER QQ-P-416 TYPE II, CLASS 3 CRES, passivate PER QQ-P-35

Specifications

Thread Class:

3a
Thread Direction:

Right-hand
Thread Length:

0.345 – 0.486 in, minimum
Fastener Length:

0.641 – 0.688 in, nominal
Head Style:

Flat countersunk
Head Diameter:

0.283 — 0.332 in
Internal Drive Style:

Cross recess type 1
Nominal Thread Diameter:

0.164 in
Thread Quantity Per Inch:

32
Minimum Tensile Strength:

85000 lb/sq. in
Countersink Angle:

99° — 101.0°
Screw Material:

Steel corrosion resisting
Screw Material Document And Classification:

66 Fed Std Single Material Response
Screw Surface Treatment:

Passivate
Thread Series Designator:

UNC
