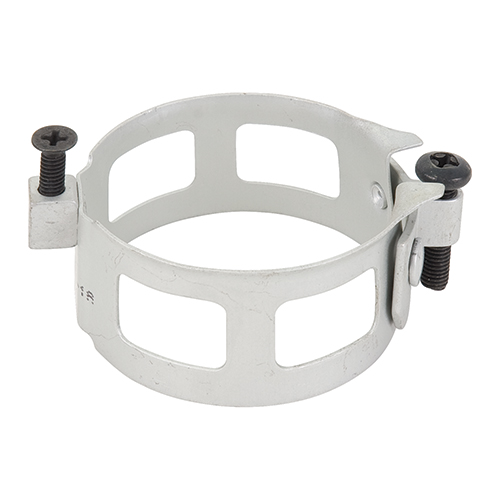

MS28042-1A Round Clamp | 1.89in, 1in depth, Boeing Certified

CLAMP/Round, open size: 1.968 closed size: 1.89 depth: 1, aluminum, anodized finish. Boeing certified.

MSP AVIATION

EDMO#: MS28042-1A

MFR#: MS28042-1A

Description

MSP avionics clamps eliminate the need for panel removal when repairing or replacing an instrument such as an altimeter or artificial horizon. These patented chem film and anodized finished clamps are rust proof for up to 25 years; made from lightweight, non-conductive aluminum, they make retrofits simpler and faster as well as making the instrument more secure in the panel.


This avionics clamp (EDMO# MS28042-1A) has a 1.89-inch round size with a 1-inch depth and constructed of anodized aluminum.

Features

  • Simplifies avionic equipment retrofits for replacement or repair
  • Does not require removal of the entire panel
  • Anti-corrosion Chem-film, anodized aluminum finish

Specifications

Shape:
Round

Open Working Size:
1.968 ±0.015 in

Closed Working Size:
1.890 ±0.015 in

Depth:
1 ±0.031 in

Mounting Hole Locations:
2.453 ±0.010 in

C:
1.203 ±0.005 in

Material:
aluminum

Finish:
anodized

Product Codes

Mfr Part No :

MS28042-1A

MIL SPEC :

MS28042-1A

ECCN :

EAR99

MIL SPEC :

MS28042-1A

SCHEDULE B CODE :

7606.92.0050
