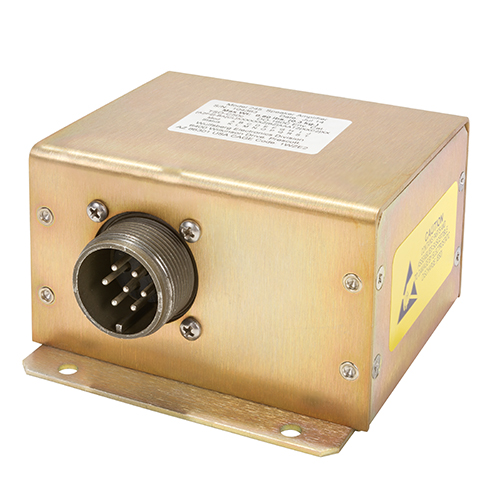

245 Speaker Amplifier | 18 Watt, 1.0 Vrms/1800 Ohm

Product Description

The Model 245 speaker amplifier is designed to be interchangeable in form, fit, and function with the Collins Avionics Model 365F-3 speaker amplifier. This PA amplifier provides 18 watts of output power with less than 1% distortion. The Model 245 is an excellent choice for cabin or cockpit applications to replace an existing Collins unit or for new installations. It is a suitable solution for cabin paging, cockpit speaker, and music applications.

Version NAT245-001 has an input of 1.0 VRMS into 1800Ω.

Specifications

• Weight: 0.4 lb, max
• Dimensions: 2.2 x 3.6 x 3.9 in, excludes mating connectors
• Power Supply: 2.5 amps, max @ 27.5 VDC
• Speaker Output: 18 watts into 4, <1% distortion
• Input impedance: 1800 ohms

Product Codes

• Mfr Part No
  245-001
• NSN
  5996-01-524-4955
• PROAPP
  PT2204NM/PQ2204NM
• SCHEDULE B CODE
  8518.40.2000
• TSO
  C50c

Documentation

• NAT245 Manual
