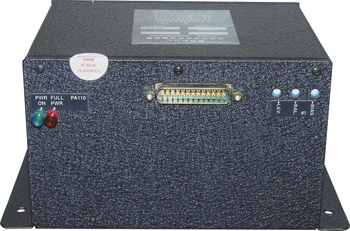

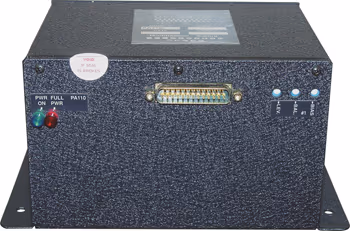

PA110 High Power Audio Amplifier | 100W
ANODYNE ELECTRONICS MFG (AEM)
EDMO#: PA110-015
MFR#: PA110-015
Tariff fee may apply
Description
The PA110 High Power Audio Amplifiers are remote mounted modular amplifiers capable of producing 110W of power, and can be used in conjunction with Loudhailer/Siren systems. All external interconnects, switches and relay contacts are gold plated for maximum reliability. Switches and relays are sealed. G10-FR flame retardant circuit boards are post-coated for maximum moisture resistance and corrosion prevention. Relays are sealed, high vibration rated (50g shock) and dry nitrogen filled.
Features
- High and low level inputs
- Optional audio key input
- Remote power keying
- Power and level indicators
- Local and level adjustment
- Used with AA21 and AA22 controllers
Specifications
Weight:
4.6 lb
Dimensions:
7.9 x 6.32 x 4.10 in.
Power:
+28 VDC noinal at 5.5 A max
Low level input:
Impedance 600 Ω ±5%
High level input:
Impedance 300 Ω ±5%
Output:
100 W nominal @ 1kHz into 10 Ω, transformer coupled
Temperature:
-45ºC to +50ºC
Altitude:
25,000 ft
Product Codes
Mfr Part No :
PA110-015
ECCN :
7A994
SCHEDULE B CODE :
8518.40.2000
