PE4716 BNC Male Connector Crimp/Solder Attachment | 1.3:1 VSWR, 4 GHz

PASTERNACK

Call For Pricing

Available to order

EDMO # PE4716

MFR Part # PE4716

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

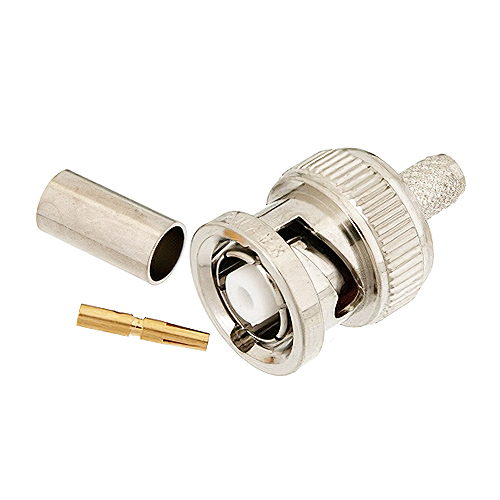

The PE4716 BNC male, reverse polarity connector features a crimp/solder attachment method for attaching to RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch coax cables. This connector offers a maximum VSWR of 1.3:1 up to 4 GHz and has a straight body geometry.

Features

Straight body geometry
VSWR of 1.3:1 up to 4 GHz
Gold-plated brass contact
Reverse polarity
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch interface types

Specifications

Weight:

0.027 lb (12.25 g)
Dimensions:

1.09 x 0.57 in (27.69 x 14.48 mm)
Frequency Range:

DC – 4 GHz
VSWR:

1.3:1
Connector Type:

BNC male (reverse polarity)
Impedance:

50Ω
Operating Voltage:

500 Vrms AC
Contact Material:

Gold-plated brass (30 µ-in min.)
Insulation Material:

PTFE
Body Material

nickel-plate brass (100 µ-in min.)
Coupling Nut Material:

nickel-plated brass (100 µ-in min.)
Operating Temperature:

-65°C to 165°C
Cable Compatibility:

RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch interface types
