RF Load Connector | 2 Watt, Up to 6GHz, TNC Male, Tri-Metal Plated Brass

Product Description

RF Load Connectors are indispensable components in many RF, microwave, and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce the signal integrity. By terminating an unused port with a matched load, the incident energy will be absorbed with minimal reflection. These termination components are commonly used to terminate devices such as couplers, circulators, and switches. They are also widely used in measurement systems to ensure accurate results.

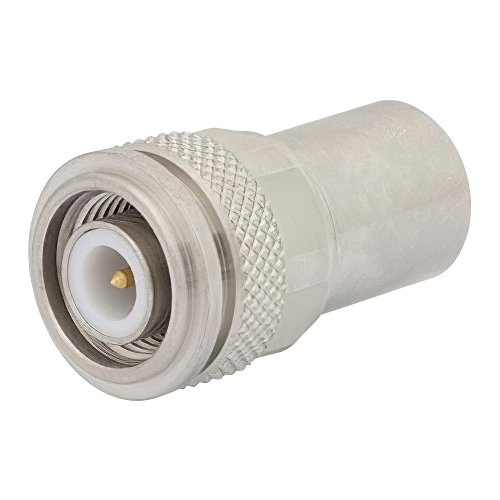

This RF Load Connector (EDMO# PE6172) has a TNC male connector, operates from DC to 6 GHz, and handles up to 2 Watts(CW).

Specifications

• Weight:
  0.027 lbs (12.25 g)
• Dimensions:
  1.1 x 0.63 in (27.94 x 16 mm)
• Connector:
  TNC Male
• Frequency Range:
  DC to 6 GHz
• Impedance:
  50Ω
• VSWR:
  1.2:1
• Input Power(CW):
  2 W

Product Codes

• Mfr Part No
  PE6172
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
