PE9089 N Female to TNC Male Adapter | 1.3:1 VSWR, DC to 6 GHz

Product Description

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

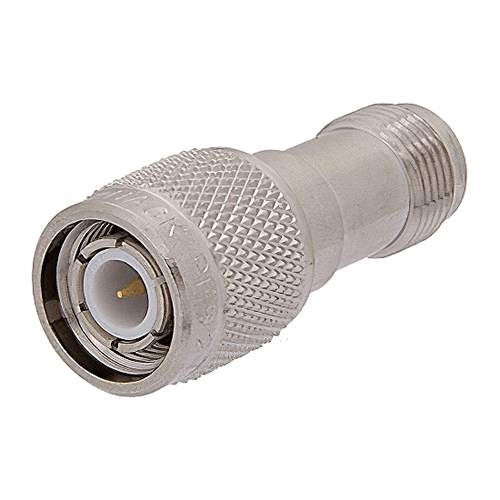

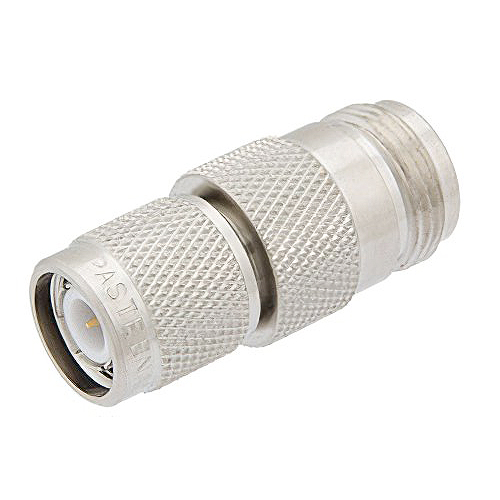

This RF adapter (EDMO# PE9089) is an N female to TNC male adapter that features a straight body geometry and a gold-plated brass contact. This connector also has maximum 1.3:1 VSWR up to 6 GHz with a 50Ω impedance and is MIL-STC-346A compliant.

Specifications

• Weight:
  0.088 lb (3.92 g)
• Dimensions:
  1.5 x 0.669 x 0.669 in (38.1 x 16.99 x 16.99 mm)
• Frequency Range:
  DC – 6 GHz
• VSWR:
  1.3:1
• Operating Voltage:
  500 Vrms AC
• Polarity:
  Standard
• Interface Specifications:
  MIL-STD-348A
• Contact Material:
  Gold-plated contact (50 µ-in min.)
• Insolation Material:
  PTFE
• Outer Conductor:
  Nickel-plated brass (100 µ-in min.)
• Body Material:
  Nickel-plated brass (100 µ-in min.)
• Gasket Material:
  Silicone
• Operating Temperature:
  -65°C to 165°C

Product Codes

• Mfr Part No
  PE9089
• SCHEDULE B CODE
  8536.69.4010
