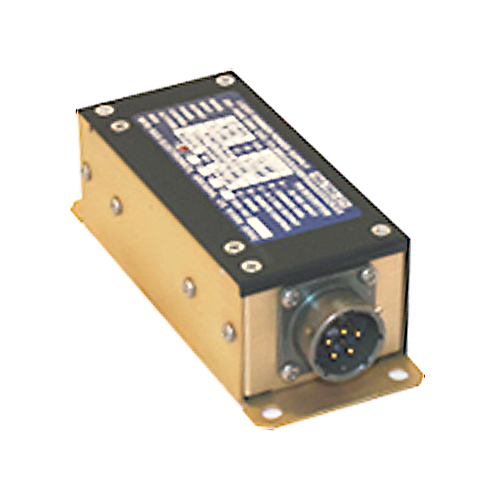

RR88 Regulated DC-TO-DC Power Converter | 2-channel, 180-watt, 10-24 VDC
Product Description
The RR18, converts a wide input voltage range of 10-24 VDC to a dual regulated 24 VDC outputs. The converter is capable of delivering 160 Watts and 25 watts continuously for an input voltage range of 10 to 24 VDC. The converter delivers at full load a minimum voltage of 18 VDC at 8 VDC input voltage. The control circuitry includes use of a popular PWM for voltage regulation and output current limit. Protection circuitry includes the output over-voltage limit.
Specifications
Weight:
0.75 lb (340 g)
Dimensions:
1.76 x 2.20 x 5.00 in (44.7 x 55.9 x 127.0 mm)
Normal Voltage:
10 VDC to 24 VDC (for regulated output)
Output Voltage:
CH1 & CH2: 24 VDC regulated (for input voltage from 10 to 24 VDC) Greater than 18 VDC
for input voltage of 8 VDC (follows the input voltage for input above 24
VDC)
Efficiency:
90% minimum at 14 VDC input
Temperature:
-55°C to 71°C
Altitude:
55,000 ft
Compliance:
FAA TSO-C71
Product Codes
- Mfr Part No:RR18
- EDMO #:RR18
- Brand:K G S ELECTRONICS
- Category:Inverters & Converters
- ECCN:3A225
- SCHEDULE B CODE:8504.40.0018
