SiteHawk RF Cable and Antenna Analyzer | 1 MHz - 6 GHz
Product Description
The Bird SiteHawk series cable and antenna analyzer offers critical coverage and a wide frequency range from 1 MHz to 6000 MHz, ensuring the ability to find any discrepancies in cables and connectors. With Bird's FTF (Distance to Fault) mode, the SK-6000-TC can identify the exact location of any fault quickly and accurately.
The (EDMO# SK-6000-TC) comes standard with the calibration combo, stylus, AC adapter (12 VDC output), hard carrying case, soft carrying case, RF cable (1.0 m long), USB drive, USB adapter, manual and battery.
Features
- Test RF cables and antennas at the frequency of operation.
- Locate RF cable, connector and antenna problems at the source.
- FDR (Frequency Domain Reflectometry) measurement method results in a highly reliable assessment of the health of critical components in your system; ultimately providing a “heads-up” before a failure occurs.

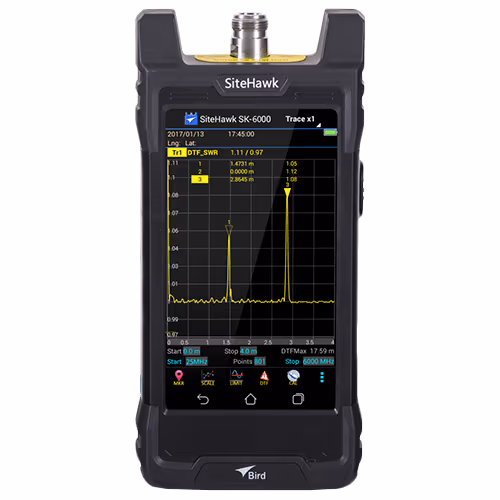

- Fault location or DTF mode plots VSWR or Return Loss levels at each distance point along the cable and antenna system length.
- Cable Loss function measures insertion loss of the cable system over a given frequency range.
- OTG USB communication port for connection to Bird power sensors, storage devices and battery charging.
Specifications
Dimensions:
7.7 x 3.6 x 2.4 in (195 x 90 x 60 mm)
Frequency Range:
1 MHz to 6000 MHz
Frequency Resolution:
1kHz
Output Power:
-10 dBm, (typ)
Trace Noise Magnitude (IFBW 1kHz):
0.05 dB rms
Measurement Speed:
1 ms/data point
Measurement Points:
51 to 3201
Measure Bandwidth:
100 Hz to 30 kHz
Temperature Stability:
0.01 dB/°F (0.02 dB/°C)
Return Loss:
0 to -60 dB
Resolution:
0.01 dB
VSWR:
1.0 to 65.0
Cable Loss Range:
0 to 30 dB
DTF Range:
0 to 5000 ft (0 to 1500 m)
Corrected Directivity:
>38 dB
Input Voltage:
50V (max)
Immunity to Interfering Signals:
+13 dBm
Power Measurement:
Yes
Frequency Accuracy:
±2.5x10-6 @ 25°C
Reflect Amplitude Accuracy:
–15 dB to 0 dB: 0.4 dB
–25 dB to –15 dB: 1.5 dB
–35 dB to –25 dB: 4.0 dB

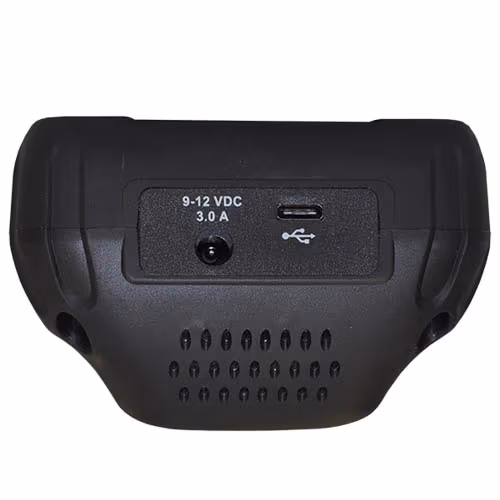

USB:
Type-C, 3.0

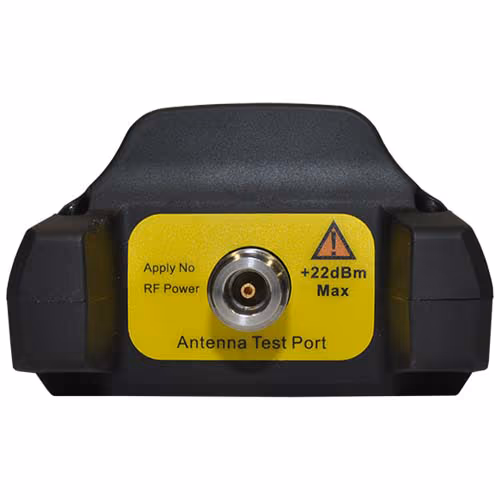

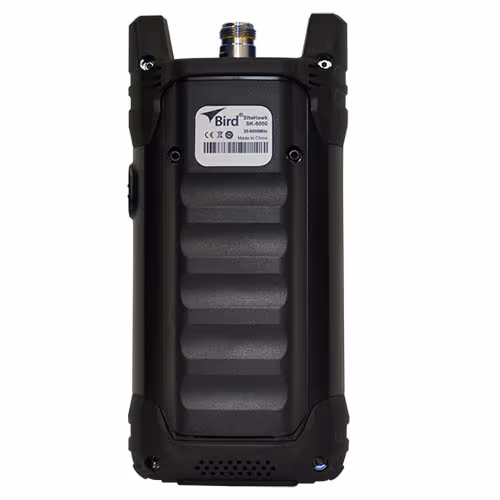

Test Port:
N-type Female, 50 Ohms
Operating Temperature:
14°F to 131°F (-10°C to 55°C)
Storage Temperature:
-40°F to 176°F (-40°C to 80°C)
Battery Charging Temperature:
32°F to 95°F (0°C to 35°C)
Display:
5.5", 720p
Languages:
English, Chinese, Spanish
Battery Type:
Lithium-ion rechargeable
Battery Operating Time:
10 hrs. (typical)
Battery Charge Time:
5 hrs. (typical)
Storage Capacity:
Thousands of trace and setups
Recommended Calibration Interval:
3 years
CE Certification:
Yes
EMC Certification:
Standard EN 61326-1:2006
Safety Certification:
Standard EN 61010-1:2001
Product Codes
- Mfr Part No:SK-6000-TC
- EDMO #:SK-6000-TC
- Brand:BIRD ELECTRONICS
- ECCN:7B994
- ECCN:7B994
- SCHEDULE B CODE:9030.33.0040
- SCHEDULE B CODE:9030.33.0040
