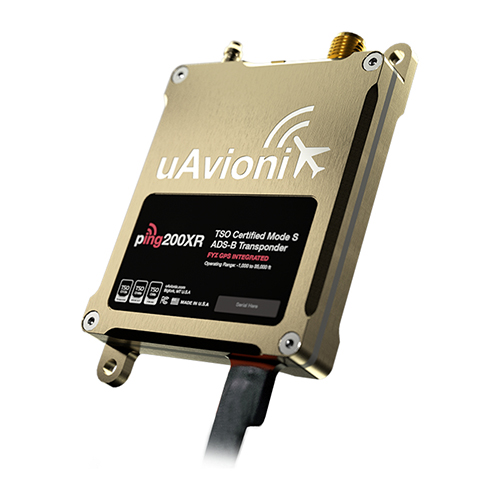

ping200XR TSO Certified Mode S ADS-B Transponder + GPS

UAVIONIX

Call For Pricing

Available to order

EDMO # UAX9011101

MFR Part # UAX-90111-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The ping200XR TSO (EDMO# UAX9011101) is a powerful, ultra-lightweight Mode S ADS-B transponder with an integrated TSO-certified aviation GPS. Specially designed for unmanned aircraft, ping200XR enables seamless entry into controlled airspace and ensures global regulatory compliance. Its advanced technology guarantees visibility to Secondary Surveillance Radar (SSR), Traffic Collision Avoidance Systems (TCAS), and ADS-B IN receivers worldwide.

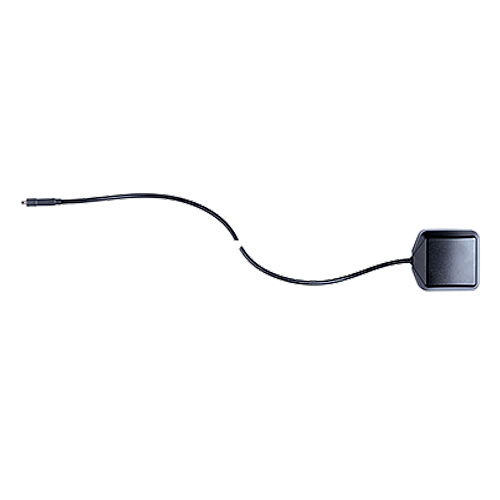

*Note: ping200XR TSO does NOT include the GPS antenna. A GPS antenna with MMCX connector is required for installation.

Features

Compact and Efficient: Weighing only 52 grams and drawing just 1.5 Watts, it surpasses heavier traditional transponders, ideal for Class 1 and 2 sUAS
TSO Certified Integration: Combines Mode S ADS-B transponder and truFYX TSO SBAS GPS receiver, certified to RTCA DO-229E and TSO-C145e standards, ensuring compliance with global controlled airspace requirements
Versatile Autopilot Compatibility: Seamless integration with leading autopilot systems, enabling direct control via ground control station (GCS) or easy payload operation with uAvionix mini-controller
Comprehensive Mode Functionality: Fully configurable Mode A, C, S, and Extended Squitter (ES) functionality
High-Reliability GPS: SIL 3 GPS integrity level ensures high-reliability positioning data
Precision Altitude Sensing: Highly accurate static pressure sensor up to 35,000 ft
Advanced Surveillance: Ensures reliable detection by SSR, TCAS, and ADS-B IN systems, providing unmatched operational safety and airspace integration
Dynamic Flight Control: Supports dynamic in-flight control for real-time adjustments
Robust Environmental Design: Ruggedized design validated against environmental standards (DO-160G)

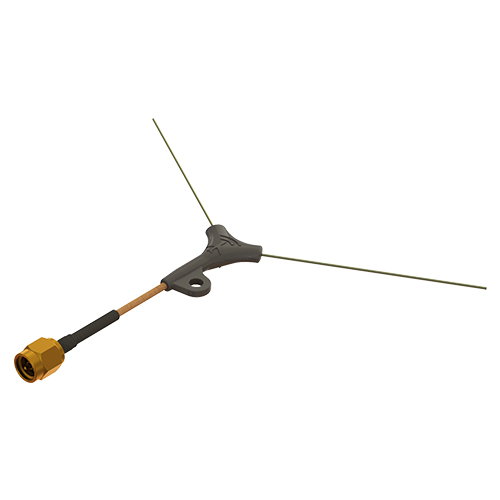

Also Purchased

Specifications

Weight:

52 g
Dimensions:

47 x 72 x 10 mm
Input Power:

9 to 30.3 VDC (3S-8S LiPo), 1.5 W Continuous On/Alt, 4 W Peak (8ms maximum)
SIL/SDA:

3/2
Operating Temperature:

-35°C to 70°C
Hardware P/N:

UAV-1007127-()
Software P/N:

UAV-1002393-()
Transponder MTL 1030 MHz:

-74 dBm ±3 dB
1090 Transmit Power:

250 W Nominal
GPS L1C/A w. SBAS:

12 GPS Channel 3 SBAS Channels
HPA / VPA:

5m / 7m
Velocity Accuracy:

3 m/s
Time Accuracy:

30 ns
Update Rate:

5 Hz
Acquisition Sensitivity:

-148 dBm
Tracking Sensitivity Altimeter:

-167 dBm
Altimeter Range:

-1000 to 35,000ft – TSO-compliant 35,000 to 50,000ft - ±1% Accuracy
Baudrate:

1,200–115,200 bps
Protocol:

uAvionix UCP Protocol/GDL90+
