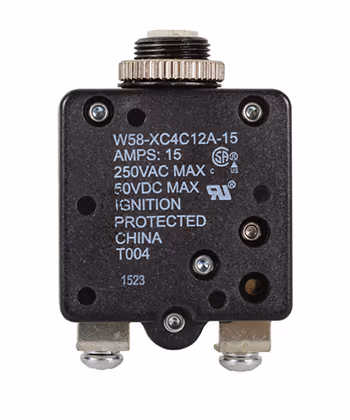

W58 Series Circuit Breaker | 15 Amp Rating, Push Actuator

W58 Series Circuit Breaker | 15 Amp Rating, Push Actuator

TE CONNECTIVITY

EDMO#: W58-15

MFR#: 4-1393249-1

Tariff fee may apply

Tariff Warning Icon

Description

The W58 series are secondary panel-mount thermal circuit breakers with a push to reset actuator and series trip function. The thermal type breakers have an interrupt capacity of 2000 amps at 50 VDC and 1000 amps at 250 VAC. The button color has white with black rate marking with a red trip band.

Includes hardware.

Features

The W58-XC4C12A-15 circuit breaker (EDMO# W58-15) is rated for 15 amps.

  • Single pole
  • Series trip
  • Cannot be manually tripped
  • Button extends for visual trip indication
  • Push-to-reset operation
  • Screw terminal

Specifications

Weight:
Less than 1 1/2 oz. (42.5g)

Vibration:
Withstands to 10g at 10-55 Hz

Mechanical Shock:
Withstands to 10g

Endurance Cycling:
Over 1,000 cycles at 200% of rated load

Dielectric Strength:
Over 1,500 volts RMS

Current Rating:
15 amps

Voltage Rating:
AC 250V
DC 50V

Number of Poles:
1

Terminals:
#6-32 screw terminals

Product Codes

Mfr Part No :

4-1393249-1

ECCN :

EAR99

SCHEDULE B CODE :

8536.20.0020
