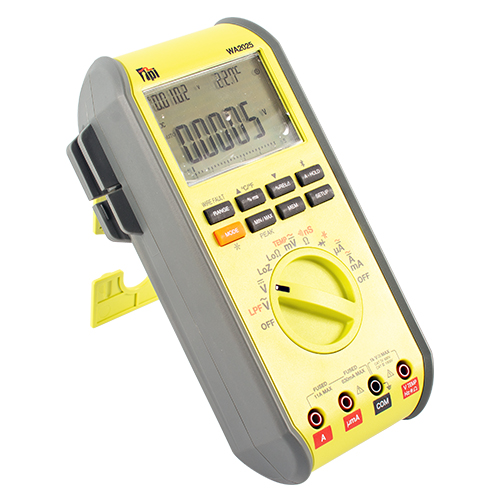

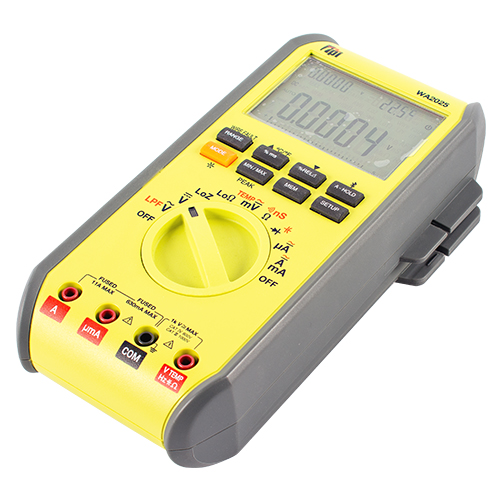

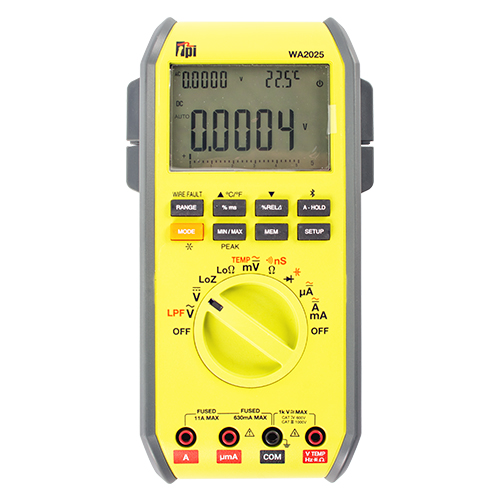

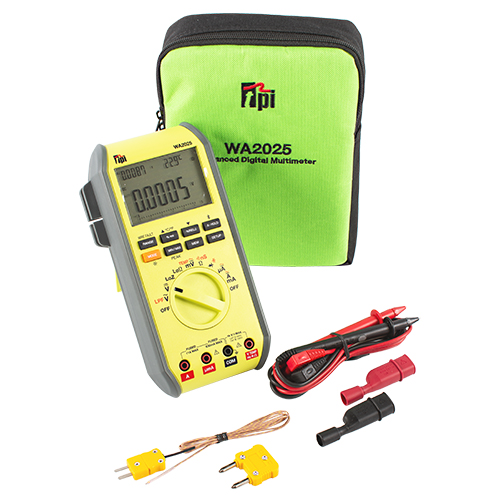

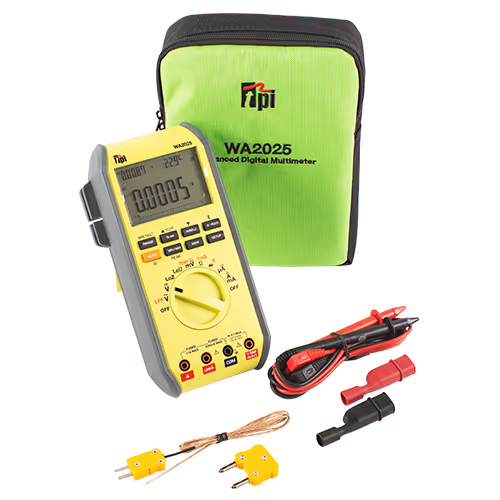

WA2025 Advanced Digital Multimeter w/ Wire Fault Function & Bluetooth

Product Description

The TPI WA2025 handheld multimeter (EDMO# WA2025) includes a Wire Fault Test that finds short circuits in wire runs and displays the distance to the short. The low 50 Ω resistance range, supported by a stable 20 VDC 10 mA output, ensures stable measurements, while the Low Z voltage mode reduces ghost readings in complex electrical environments. The WA2025 features Bluetooth 5.0 connectivity for remote viewing and report creation, and a rugged IP51 rated housing.

Features

Wire Fault Test for finding short circuits in wire runs
Displays the distance to the short
Low 50 Ω Resistance Range with 20 VDC 10 mA output for stability
Low Z Voltage Range
Bluetooth 5.0 output for remote viewing and report creation
Rugged IP51 rated housing and 3-year limited warranty
CAT IV 600V / CAT III 1000V

Specifications

Maximum Voltage:
1000 V

Maximum Current:
10 A

Resistance:
500 MΩ

Low Resistance Range:
50 Ω with 20 VDC @ 10mA output

Frequency:
1 MHz

Capacitance:
10 mF

Temperature:
-328ºF to 2462ºF

True RMS:
Yes

Decibels:
Yes

Diode Test:
Yes

Conductance:
Yes

Duty Cycle:
Yes

Pulse Width:
Yes

Low Z Voltage Function:
Yes

Min/Max Record:
Yes

Relative Mode:
Yes

Display Hold/Auto Hold:
Yes

Sleep Mode/Auto Off:
Yes

Bluetooth:
5.0 Output

Time Stamp Logging:
Yes

Frequency Check in Volt Mode:
Yes

Low Pass Filter:
Yes

Low Impedance Voltage Measurement:
Yes

Trend Capture:
Yes

Separate Fuse/Battery Access:
Yes

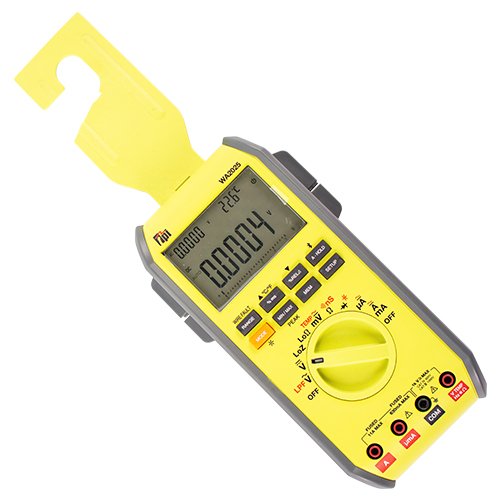

Magnets and Hanger/Tilt Stand:
Yes

Product Codes

Mfr Part No:WA2025
EDMO #:WA2025
Brand:TEST PRODUCTS INTERNATIONAL (TPI)
Category:Wire & Cable Testers
SCHEDULE B CODE:9025.19.8080
