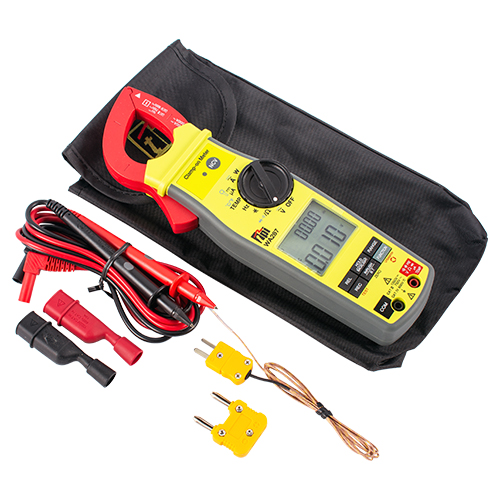

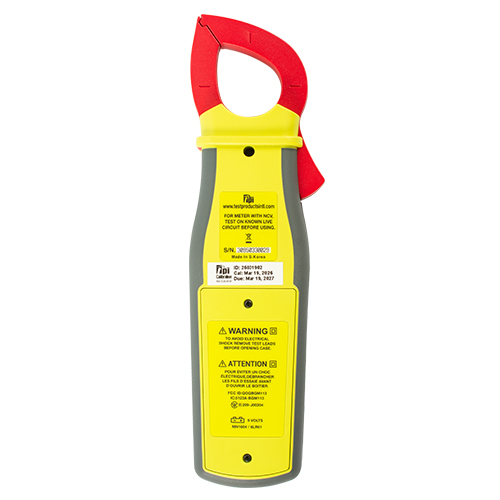

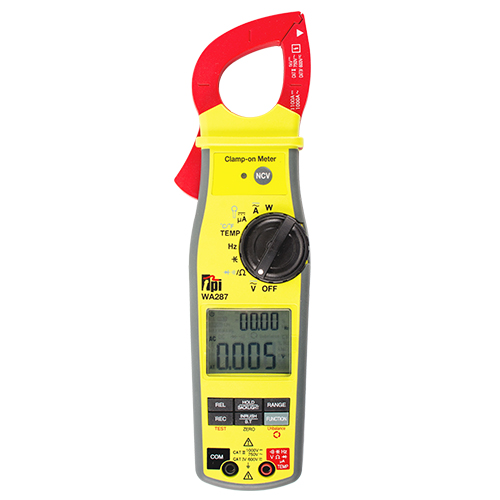

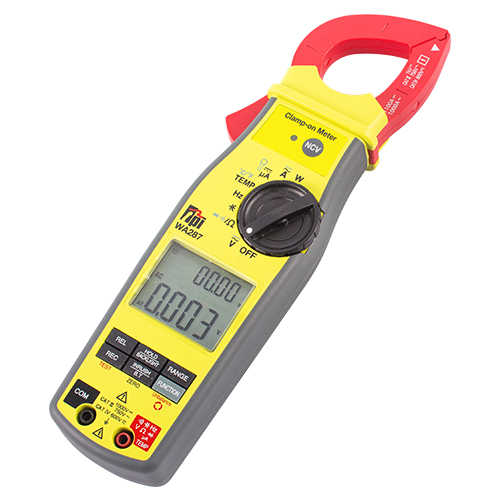

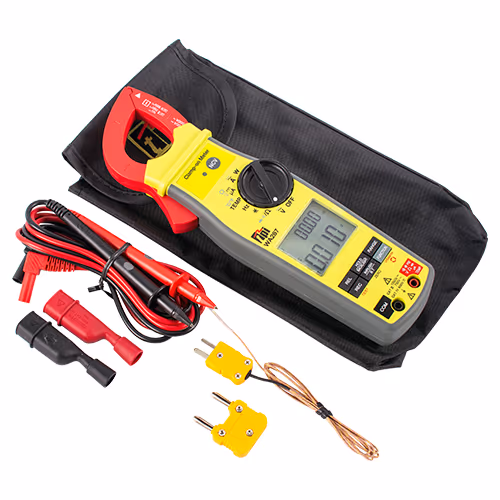

WA287 Digital Clamp Multimeter with Bluetooth
Product Description
The slim design WA287 is a hand-held, auto ranging clamp-on digital multimeter (EDMO# WA287) with Bluetooth output for use with the TPI View app. Backlit dual display, True RMS response, Frequency with Duty Cycle, Min/Max/Avg, Temperature, Inrush Current measurement, Capacitance, DC microamps, and Non-Contact Voltage detection are just a few of the features of the 287.
The WA287 can also calculate wattage, show phase rotation, and display voltage and amperage unbalance. The TPI View app can be used in conjunction with the WA287 to store measurements to jobs, create and email test reports, view live readings from a safe distance, or print measurements to the optional A711BT printer.
Features
- True RMS for accurate voltage and amperage measurements
- In-Rush Current measurement to capture motor start up current
- Non-Contact Voltage detection through the jaw
- Measure Active Power, Reactive Power, Apparent Power, and DC Power
- AC Voltage and AC Amperage Unbalance Test
- Phase Rotation
- Bluetooth LE communication
- Use with TPI View app to display live readings, save measurements, create and email reports with GPS tagged date and time
- CATIV 600V rated for safety
Specifications
Weight:
1.1 lb (499 g)
Dimensions:
9.9 x 2.5 x 1.4 in (252 x 64 x 36 mm)
Display:
6000 count dual display LCD with backlight
Operating Temperature:
32ºF to 113ºF (0ºC to 40ºC)
Storage Temperature:
-4ºF to 140ºF (-20ºC to 60ºC)
Relative Humidity:
80% non-condensing
Maximum Altitude:
6,562 ft (2,000 m)
Battery Type:
9 V Alkaline (NEDA 1604)
Battery Life:
Approximately 90 hrs (No Backlight or Bluetooth)
Bluetooth:
5.0 (350 ft range depending on obstacles)
AC Amps:
1000 A
DC Amps:
1100 A
DC Microamps (uses test leads):
600 uA
AC Voltage:
750 V
DC Voltage:
1000 V
Resistance:
60 MΩ
Capacitance:
60 mF
Frequency:
6 MHz
Duty Cycle:
Yes (up to 60 kHz)
In-Rush Current:
Yes
Record Mode (min/max/avg):
Yes
Relative Mode:
Yes
Diode Test:
Yes
Continuity:
Yes
Non-Contact Voltage:
Yes
Active Power, Reactive Power:
Yes
Apparent Power, DC Power:
Yes
AC Voltage / AC Amperage Unbalance:
Yes
Phase Rotation:
Yes
Backlight Display:
Yes
Bluetooth LE:
Yes
Product Codes
- Mfr Part No:WA287
- EDMO #:WA287
- Brand:TEST PRODUCTS INTERNATIONAL (TPI)
- Category:Wire & Cable Testers
- SCHEDULE B CODE:9025.19.8080
