Orion 360 Beacon Light | Red LED, 3.75in base, 14 VDC
WHELEN ENGINEERING
EDMO#: 010772010-
MFR#: 01-0772010-52
Description
The ORION 360 LED beacons are designed for fixed wing aircraft. These 4th generation LED beacons are designed to replace legacy 2.6 inch and 3.75 inch round beacons. The ORION 360 beacons have a lower profile then previous generations.

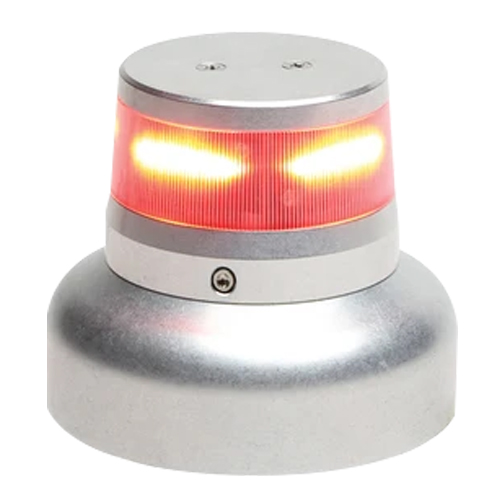

This round LED beacon (EDMO# 010772010-) has a 3.75 inch base, colored red, and operates on 14 VDC.
Features
- Available in either 14 VDC or 28 VDC
- Other color schemes also available: red, red/white split, and white
- FAA TSO-C96a Class III/ STC approval
Specifications
Weight:
0.30 lb (narrow base)
0.37 lb (wide base)
Dimensions:
2.6 x 2.6 x 1.6 in (narrow base)
3.67 x 3.67 x 2.83 in (wide base)
Current:
0.53 A, 14 VDC
0.26 A, 28 VDC
Product Codes
Mfr Part No :
01-0772010-52
