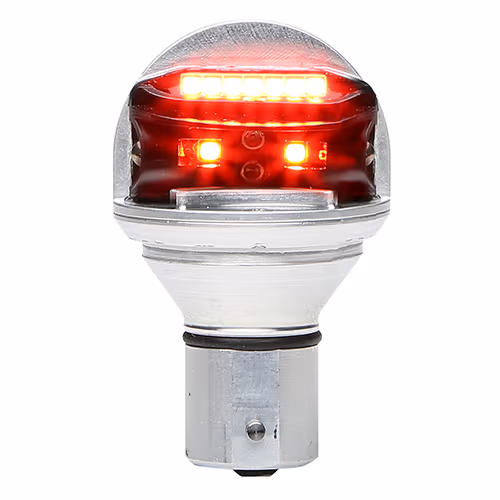

CHROMA Series LED Plug N Play Position Lamps | Red, 14 VDC

WHELEN ENGINEERING

Call For Pricing

In stock

EDMO # 0771900-R1

MFR Part # 01-0771900R14

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

CHROMA Series LED Plug N Play Position Lamps meet all FAR requirements for Chromaticity, Intensity, and Coverage FAR Part 23.1383 the 23.1397 FAR Part 27.1383 thru 27.1397 Unique reflector design allows for full FAR coverage compliance. Fixed current source design provides consistent light output compared to filament lamps and LED resistor type designs = complete FAR compliance. Robust machined base provides vibration resistance tested in accordance with RTCA/DO160 CAT U2, Curves F, F1 for rotorcraft.

This CHROMA Series LED Plug N Play Position Lamp (EDMO# 0771900-R1) has red lighting and is a 14-Volt unit.

Features

Direct replacements for W129028 / 129028 / A7512-24 / W628 / 628 incandescent bulbs
Unique reflector design allows for full FAR coverage compliance
Robust machined base provides vibration resistance tested in accordance with RTCA/DO160 CAT U2, Curves F, F1 for rotorcraft
All electronic logic conformal coated for weather resistance
O Ring allows for a more secure connection to lamp socket, reducing wear over time
Nickel Plated hard contact eliminates premature wear
Keeps original lens configuration to maintain FAA approvals of light assembly
LED bulbs have a 10,000 hour operating life, while incandescent bulbs have a fragile filament and a 300 hour average life
NO EMI / RFI interference, as Chroma bulbs are built using fixed current sources
85% reduced current draw
Five year warranty
FAA/TSO Approved
