Product Description

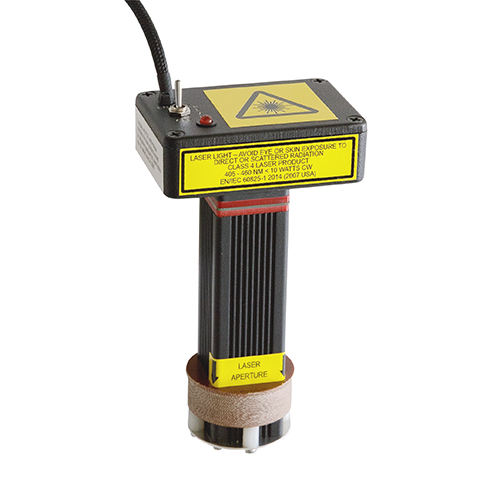

The LZ2 Laser engraver tool for Panel Pro produces clean looking panel markings on materials such as light colorer powder coat. This laser engraver mounts to the Panel Pro accessory mount on models with serial numbers of 2075 or higher are laser ready.

This LZ2 laser engraver (EDMO# 1-0312-00) works with Panel Pro version 6126.

Features

LZ2 laser engraver includes:
LZ2 Laser Module
Warning light tower (the LZ2 module, the SC3 controller, and the AvCAM 18 and AvCAM 19 screen also have emission indicators)
3 pairs of safety glass rated for 445 nm laser OD4
Supplementary shield provides further protection from reflected and scatted laser radiation
Existing AvCAM 18 and 19 software is laser capable
Features:
Simple to use
No contact with the panel
Does not require consumable supplies or cutting bits
No coolant required
Uses the same .dxf file format as used for Panel Pro cutting operations

Specifications

Focus Distance from Nose:

0.708 (18 mm)
Laser wavelength:

445 nm
Laser Power:

class 4
Warranty:

6 month
Safety Glass Requires:

rated for 445 nm wavelength laser at an optical density of 4
Recommender Operation Time:

1/2 hr at 100% power
