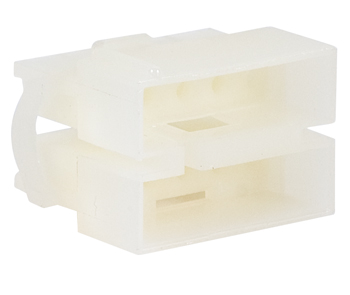

Commercial Mate-N-Lok Receptacle | 10-pin, 2-row
TE CONNECTIVITY
EDMO#: 1-480286-0
MFR#: 1-480286-0
Tariff fee may apply
Description
Commercial Mate-N-Lok rectangular power connector receptacles allows wire bundles and harnesses to interface with other wire bundles or panel connections.
This Mate-N-Lok receptacle (EDMO# 1-480286-0) features a 10-pin/2-row configuration for wire-to-wire and wire-to-panel connections.
Features
- 10-pin/2-row configuration
- wire-to-wire and wire-to-panel connections
Specifications
Connector Type:
housing
Connector & housing type:
Receptacle
Connector System:
wire to panel, wire to wire
Number of Positions:
10 positions, 2 rows
Operating Voltage:
250 V
Row-to-row Spacing:
0.36 in (9.14 mm)
Panel Thickness:
0.04 to 0.1 in (1.02 to 2.54 mm)
Termination Method:
crimp
Temperature:
-67°F to 221°F (-55°C to 105°C)
Application:
Power & signal
UL Flammability Rating:
UL 94V-2
Product Codes
Mfr Part No :
1-480286-0
ECCN :
EAR99
SCHEDULE B CODE :
8538.90.6000
