INTEGRA EASY EVO | DIN-12, AF 406 ELT, Mounting Bracket, SUB-D 9, RC200


KANNAD

Call For Pricing
Available to order
EDMO # 1002824
MFR Part # 1002824
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The INTEGRA 406 ELT offers an efficient option for installing or retrofitting a 406 MHz ELT with GPS capabilities in individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT network of satellites in conjunction with a homing signal on 121.5 MHz. The Integra’s GPS capabilities make it possible for the ELT to send exact GPS coordinates for a crash site location further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.

Features

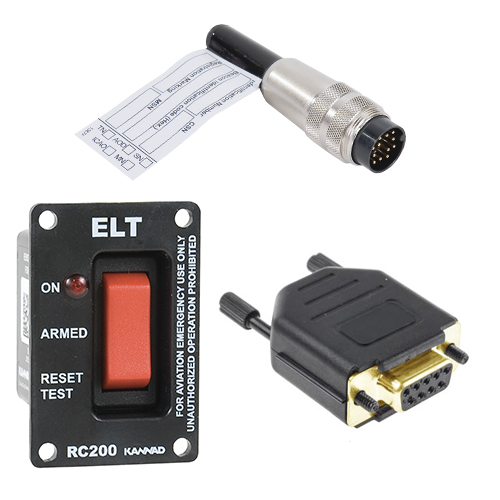

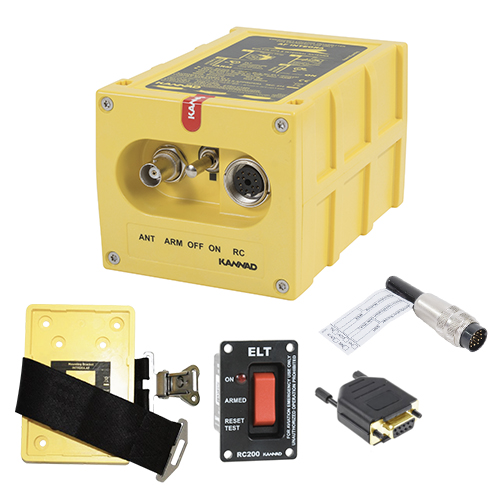

  • Pack Includes:

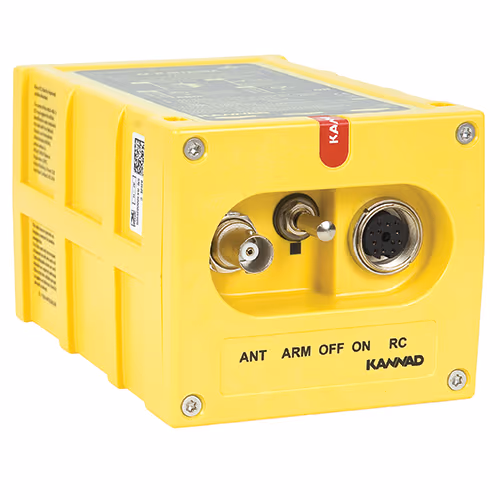

  • Kannad INTEGRA AF 406 ELT

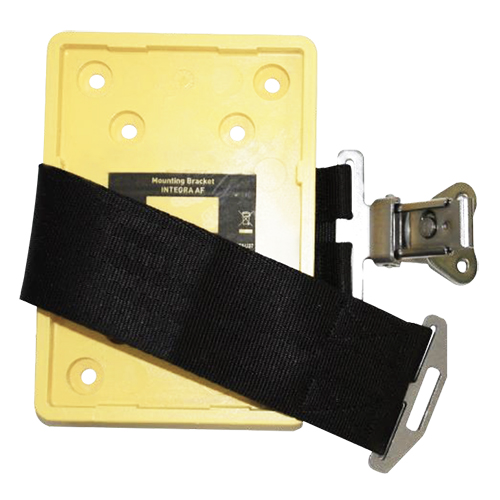

  • TSO-C126b mounting bracket for Integra AF
  • DIN-12 connector
  • SUB-D 9 pin female connector
  • RC200 remote control panel
  • Features:
  • Automatic fixed (AF) emergency locator transmitter
  • Operates on 406 MHz and 121.5 MHz frequencies
  • Embedded GPS Receiver
  • Integrated internal 406 MHz backup antenna
  • Lightweight and compact size
  • Short circuit protection
  • Does not require an external power supply
  • Remote control panel offers optional 2-wire or 3-wire installations
  • Universal mounting bracket provides easy retrofitting
  • NMEA Integra e-Nav cable provides the option to connect to aircraft GPS unit
  • Compliant with Canadian air operators mandate

Specifications

  • Weight:
    1.873 lb (850 g), including batteries
  • Dimensions:
    6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
  • Frequency:
    406.037 MHz, 121.5 MHz
  • Interfaces:
    DIN12, BNC
  • Battery:
    6-year
  • Operating temp:
    -20°C to 55°C
  • Material:
    Molded plastic
  • Approvals:
    FAA TSO C126A and ETSO 2C126
