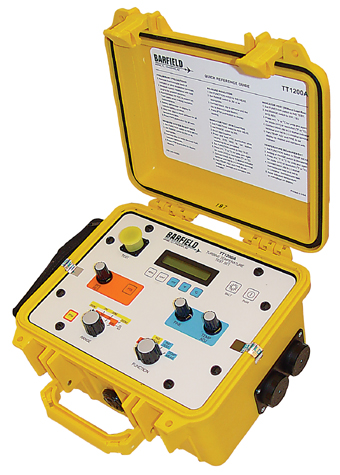

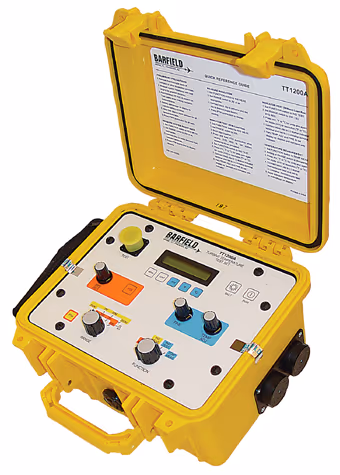

TT1200A Digital Turbine Temperature Test Set | For CF6-80A, A1, A2 Application

BARFIELD

Call For Pricing

Available to order

EDMO # 102-00932

MFR Part # 102-00932

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The TT1200A digital turbine temperature test set is specially designed for testing and calibrating CH-AL (chromel-Alumel temperature indicating systems. This unit provides a quick method for troubleshooting aircraft temperature systems. This test kit is sensitive enough to accurately test thermocouple and system resistance, insulation, and indicator calibration. Also, portability, simple operation, and direct reading of measurement are features built right into the design of this multi-functional temperature test set.

Version (EDMO# 102-00932) is compatible with CF6-80A, A1, A2 Application.

Features

Self-contained, self-monitoring portable temperature and resistance measuring
Microprocessor based
Calibration date from display with user alerts to approaching cal date
Backlit 16 character alphanumeric display with user prompts
True 4-wire resistance measurements
Celsius, Fahrenheit, and equivalent millivoltage displays
Temperature range to 1372ºC
Automatic ambient test point temperature correction
Powered from long lasting C cell batteries with Auto-Off feature
Timed measurement with display hold feature for resistance and insulation functions

Specifications

Weight:

7.3 lb
Dimensions:

11 x 10 x 7 in.
Temperature measurement:

Range: -200 to 1372 °C Accuracy: ± 0.3 °C (Typ at 25 °C)
Resistance measurement:

20W: 0 - 19.999W 0.001W increments 200W: 0 - 199.99W 0.01W increments 2KW: 0 - 1.9999KW 0.1W increments 20KW: 0 - 19.999KW 1W increments Accuracy: ± 0.05 % of reading ± 2 counts
Insulation measurement:

200KW:0 - 199.9KW 0.1KW increments 2MW: 0 - 1.999MW 1KW increments 20MW: 0 - 19.99MW 10KW increments 200MW: 0 - 199.9MW 1001KW increments Excitation: 45 VDC Accuracy: ± 5 % of reading ± 2 counts
Operating temperature:

-10 to 50ºC
