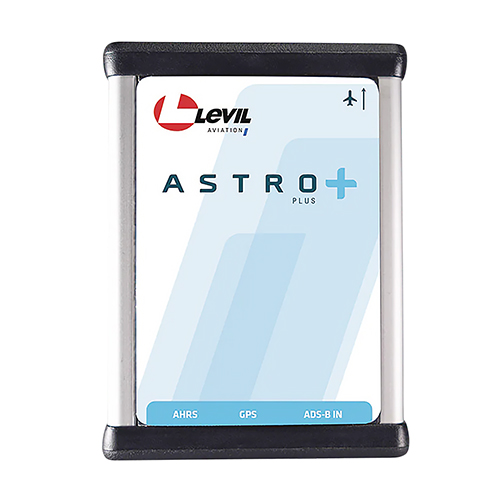

Astro+ Portable Dual-Band ADS-B Receiver

Select an option

LEVIL

Call For Pricing

Available to order

EDMO # 108-01-01

MFR Part # 108-01-01

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Astro+ combines a state-of-the-art aviation-grade AHRS technology, dual-band ADS-B Receiver, and an internal WAAS GPS for navigation inside one portable device. The Astro+ is capable of driving synthetic vision displays and provides the navigation information needed to turn a phone or tablet into a real glass panel.

Features

Easily mounts anywhere in the aircraft: supply power and navigate
transfers and receives data over RS232 AUX port
Record your flight data and review it on CloudAhoy, Google Earth, Xplane, Flight Simulator, and Microsoft Excel
Displays altitude
Connect a GRT EIS 4000, 6000, or 9000 via the Astro+ AUX serial port and display engine data
Displays EFIS with altitude, heading bug setting, and ground speed
Transmit weather data wirelessly to your favorite navigation app
Display the traffic around you and where they are heading without having a cluttered background
Displays vertical speed indicator
Check your instrument performance and connections, such as, battery levels, GPS reception, and ADS-B in receptions

Also Purchased

Specifications

AHRS:

360-degree pitch and bank operations GPS Independent Attitude 500°/sec max turn rates 8G’s max rating Output: Roll, pitch, magnetic heading, slip indicator, rate of turn, G meter, Pressure altitude.
Internal Battery:

Operating Time after flight (if fully charged) <= 4 hr
Charging Requirements:

One amp at 5V
Wi-Fi

: 2.4 Ghz Android and iOS compatible Support up to 6 devices connected simultaneously (UDP broadcast) Supports multiple protocols:GDL90 (default), iLevel proprietary, NMEA
GPS

: Support WAAS Cold start < 60 sec. Typ. (open sky) 1 Hz output (5 Hz optional)
ADS-B in (978/1090 MHz):

Receives regional and continental NEXRAD reports broadcasted by ADS-B towers within range: (Regional every 2.5 min. /Continental every 15 min.) Receives “GROUND TO AIR” traffic. (re-broadcast of traffic by ADS-B towers nearby) Receives “AIR TO AIR” traffic reports from other aircraft operating 978/1090 MHz transmitters: (978 MHz UAT ADS-B out and Mode-ES transponders with extended squitter)
