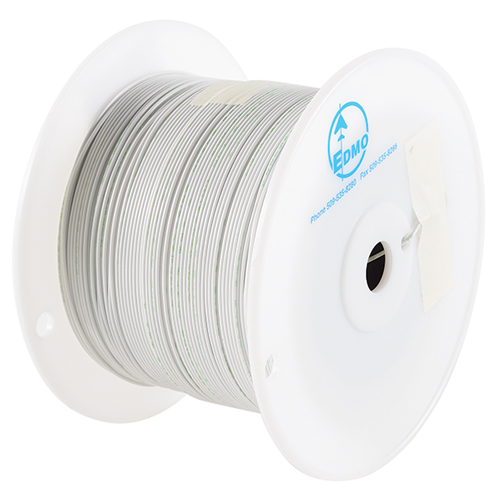

M22759/41 Dual Layer Irradiation Tefzel Wire | 10 AWG, White
EDMO
EDMO#: 10G/41-9
MFR#: M22759/41-10-9
Description
SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.
SAE AS22759/41 is ideal for use in avionics because of its superior resistance to moisture, chemicals, solvents, smoke, and flame. A nickel-plated copper conductor and dual-layer cross-linked, extruded ETFE insulation also give this wire multi-purpose qualities for other commercial applications.
Features
This M22759/41 tefzel hook-up wire 10G/41-9 has a 10 AWG, nickel-plated copper conductor and a dual layered irradiation, cross-linked, extruded ETFE insolation. Colored white.
- 600 volt rating
- 200°C temperature rating
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
Specifications
Gauge:
10 AWG
Stranding:
37/26
Conductor Size:
4.74 mm2
Diameter:
0.134 in, nominal
Weight:
32.4 lb/MFT
Resistance (@ 20°C):
1.24 Ω/MFT
Product Codes
Mfr Part No :
M22759/41-10-9
MIL SPEC :
M22759/41-10-9
ECCN :
EAR99
MIL SPEC :
M22759/41-10-9
SCHEDULE B CODE :
8544.11.0050
Notice: EDMO Distributors, Inc. has made every effort to verify the accuracy of the codes, classifications, and part approvals listed in accordance with the Department of Commerce, U.S. Census Bureau, Bureau of Industry and Security, U.S. Department of Defense and Federal Aviation Administration. EDMO Distributors, Inc. does not assume responsibility for errors or omissions. This listing is subject to change without notice.
Warning to Exporters: EDMO Distributors, Inc. does not assume responsibility for errors with any of the Schedule B Commodity Codes or Export Control Classification Numbers in this listing. It is the Exporter's responsibility to research and supply the correct codes and classifications for the product to be exported. Some products may require an Export License in order to be exported.
