110-333 ELT Antenna | Tri-Band, Blade Type, 121.5, 243, and 406 MHz, White

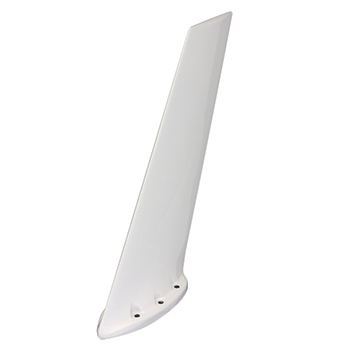

110-406 NAV HIGH SPEED BLADE

ACR ELECTRONICS / ARTEX

Call For Pricing
In stock
EDMO # 110-333
MFR Part # 110-333
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 110-333 is a tri-band blade-type antenna that operates on 121.5, 243, and 406 MHz frequencies. This unit is equipped with a dual connector installation type.

This version (EDMO# 110-333) comes in white.

Specifications

  • Height:
    10.1 in
  • Frequency:
    121.5, 243, 406 MHz
  • VSWR:
    2.0:1 (121.5/243 MHz), 1.5:1 (406 MHz)
  • Polarization:
    Vertical
  • Radiation Pattern:
    Omni-directional
  • Impedance:
    50Ω (nominal)
  • Connector:
    BNC (female) for 121.5/243 MHz, TNC (female) for 406 MHz

Product Codes

  • Mfr Part No
    110-333
  • ECCN
    7A994
  • PROAPP
    PT1113CE/PQ1113CE
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126
