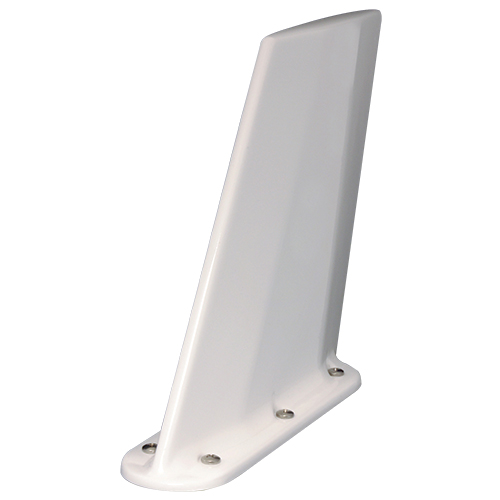

110-340-01 Tri-Band Blade ELT Antenna | 121.5, 243 & 406 MHz

110-340-01 Tri-Band Blade ELT Antenna | 121.5, 243 & 406 MHz

ACR ELECTRONICS / ARTEX

Call For Pricing
Available to order
EDMO # 110-340-01
MFR Part # 110-340-01
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Tri-Band Blade high speed elt antenna (EDMO# 110-340-01) uses innovative Tri-Band technology, bringing the 121.5, 243, and 406 MHz frequencies into a compact package. The 110-340-01 offers a single connector for installations that require this set-up and features leading edge protection.

Features

  • Tri-Band Blade ELT Antenna
  • 121.5, 243 & 406 MHz frequencies
  • Grey in color with leading edge protection

Specifications

  • Weight:
    1.4 lbs
  • Height:
    7.75 in
  • Frequency:
    121.5, 243 & 406 MHz
  • VSWR:
    121.5/243 MHz: 2.0:1 406 MHz: 1.5:1
  • Polarization:
    Vertical
  • Radiation Pattern:
    Omni-directional
  • Impedance:
    50 Ω
  • Power:
    50 W
  • Material:
    Molded blade
  • Finish:
    Polyurethane enamel
  • Connector:
    BNC Female
  • Temperature:
    -55ºC to 85ºC
  • Altitude:
    55,000 ft
  • Color:
    Grey

Product Codes

  • Mfr Part No
    110-340-01
  • TSO
    C126
