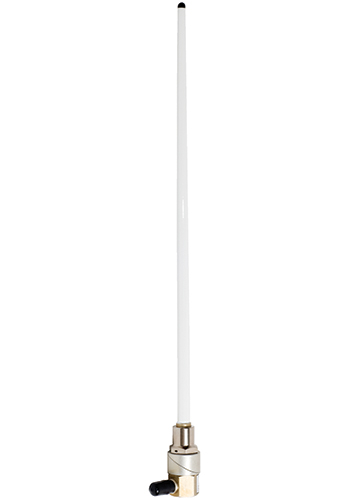

110-343 Tri-Band ELT Whip Antenna | 121.5/243/406MHz, White

110-343 Tri-Band ELT Whip Antenna | 121.5/243/406MHz, White

ACR ELECTRONICS / ARTEX

Call For Pricing
Available to order
EDMO # 110-343
MFR Part # 110-343
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 110-343 ELT whip type antenna uses Tri-Band technology to provide signal on 121.5, 243, and 406 MHz frequencies. This antenna is compatible with the C406-1 ELT.

This antenna (EDMO# 110-343) comes in white.

Features

  • High speed
  • Tri-band
  • Whip style
  • 121.5, 243, and 406 MHz frequencies
  • Aluminum alloy
  • Gloss white epoxy finish
  • BNC connector

Specifications

  • Weight:
    0.31 lb
  • Dimensions:
    17.1" base to tip
  • Frequencies:
    121.5, 243, 406 MHz
  • VSWR:
    121.5/243 MHz - 2.5:1 max 406 MHz - 1.5:1 max
  • Polarization:
    Vertical monopole
  • Impedance:
    50Ω nominal
  • Coax cable:
    RG-142
  • Connector:
    BNC female

Related Products

Product Codes

  • Mfr Part No
    110-343
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529104000
  • TSO
    C126 THIS IS A SUBCOMPONENT OF FAA TSOA ARTICLE
