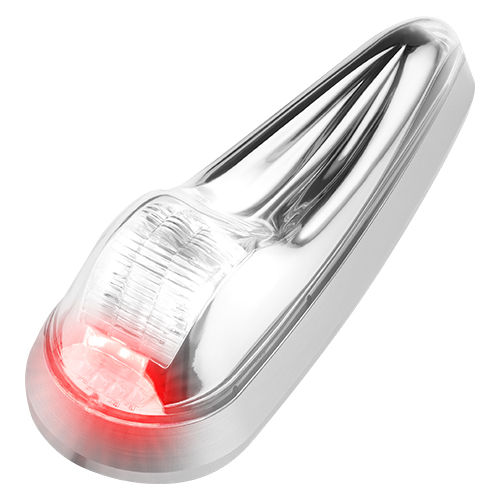

Pulsar 600 Series LED Forward & Tail Position/Anti-Collision Wingtip Light | Left Side, 14 V, Red

Product Description

The Pulsar 600 Series combines navigation, strobe, and rear-facing position lights in one compact unit. Featuring an aerodynamic design and standard mounting footprint, it’s ideal for replacing legacy lights. FAA-TSO/STC approved, it exceeds industry standards for performance and compliance.

Directional red and green LEDs provide clear wingtip orientation for safe, compliant operation. High-intensity white strobe dramatically enhances aircraft visibility in both day and night operations, aiding in recognition and collision avoidance. Aft-facing white light completes 360° coverage, improving visibility from all directions.

This Pulsar 600 Series LED Forward & Tail Position/Anti-Collision Wingtip Light (EDMO# 11110012L) is a 14-volt unit for the left side of the aircraft with red lighting.

Specifications

• Weight:
  4 oz
• Dimensions:
  5.6 x 1.9 x 1.4 in
• Mounting:
  KIT-0011 (Included)
• Voltage:
  9–15 VDC, 14 VDC (Nominal)
• NAV/POS Current:
  0.8 A @ 14 VDC
• Strobe Current:
  0.6 A at 14 VDC (Average), 4.95 A at 14 VDC (Peak)
• Strobe Duration:
  190mS (41FPM)
• Position LED Color:
  Red
• Approvals:
  FAA-TSOA/STC

Product Codes

• Mfr Part No
  11-1100-12-L
• SCHEDULE B CODE
  8539.10.0030
