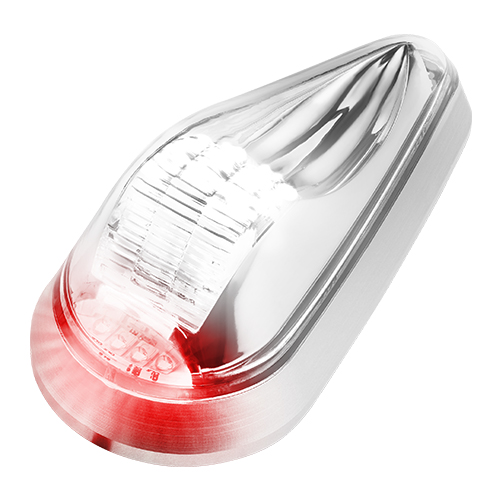

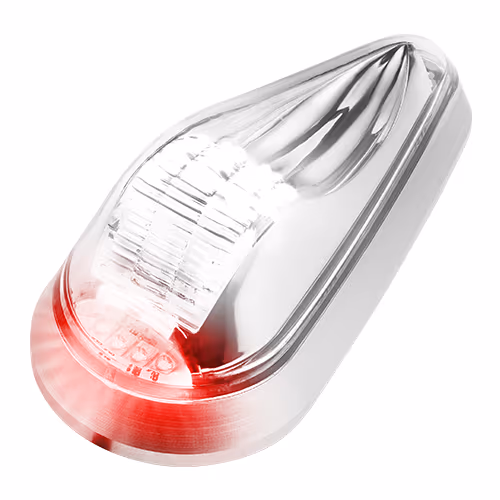

Pulsar 650 Series LED Forward Position & Anti-Collision Wingtip Light | Left Side, 14 V, Red

Product Description

The Pulsar 650 Series is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights. With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations.

Directional red and green LEDs provide clear wingtip orientation for safe, compliant operation. High-intensity white strobe dramatically enhances aircraft visibility in both day and night operations, aiding in recognition and collision avoidance.

This Pulsar 650 Series LED Forward Position & Anti-Collision Wingtip Light (EDMO# 111280B12L) is a 14-volt unit for the left side of the aircraft with red lighting.

Specifications

• Weight:
  3.8 oz
• Dimensions:
  4 x 1.9 x 1.5 in
• Mounting:
  KIT-0008 (Included)
• Voltage:
  9–15 VDC, 14 VDC (Nominal)
• NAV/POS Current:
  0.8 A @ 14 VDC
• Strobe Current:
  0.65 A at 14 VDC (Average), 4.9 A at 14 VDC (Peak)
• Strobe Duration:
  190mS (41FPM)
• Position LED Color:
  Red
• Approvals:
  FAA-TSOA/STC

Product Codes

• Mfr Part No
  11-1280-B-12-L
• SCHEDULE B CODE
  8539.10.0030
