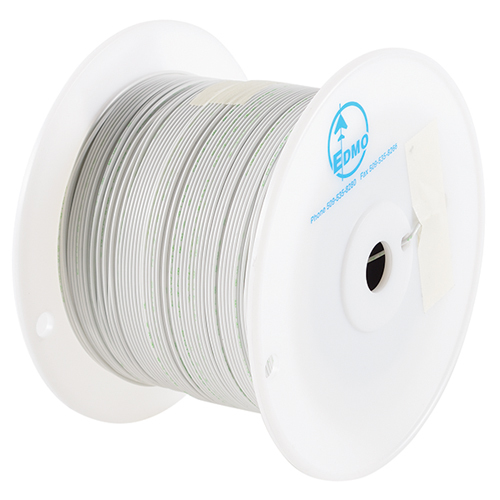

M22759/43 Dual Layer Irradiation Tefzel Wire | 12 AWG, White

Product Description

SAE AS22759 wire is a fluoropolymer insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.

SAE AS22759/43 wire has a dual-layer, cross-linked, extruded ETFE insulation and features a silver-plated copper conductor that is rated for up to 200°C offering both flexibility and durability.

This M22759/43 tefzel hook-up wire (EDMO# 12G/43-9) features a 12 AWG, silver-plated copper conductor rated for 200°C and a dual layer irradiation, cross-linked, extruded ETFE insulation. Color white.

Specifications

• Gauge:
  12 AWG
• Conductor Material:
  Silver-plated copper
• Insulation material:
  Dual layer irradiation, cross-linked, extruded ETFE
• Stranding:
  37/28
• Conductor Size:
  3.08 mm
• Diameter:
  0.111 mm, nominal
• Weight:
  20.5 lb/mft
• Resistance (@ 20°C):
  1.90 Ω/1000 ft

Product Codes

• Mfr Part No
  M22759-43-12-9
• MIL SPEC
  M22759/43-12-9
• ECCN
  EAR99
• MIL SPEC
  M22759/43-12-9
• SCHEDULE B CODE
  8544.11.0050
