IFF-45TS Test Kit | Includes Laptop with IFF45TS Mode 4 GUI/ITAR


VIAVI

Call For Pricing
Available to order
EDMO # 138553
MFR Part # 138553
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

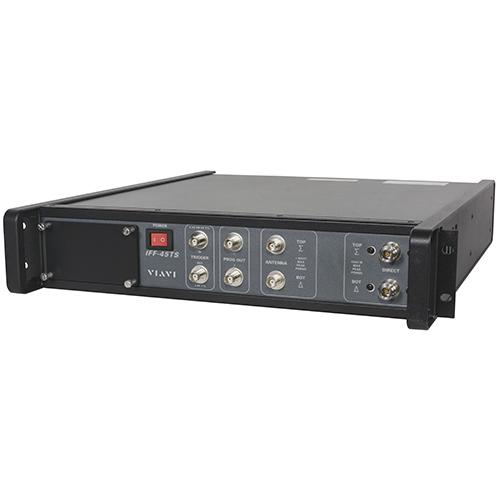

The IFF-45TS Transponder/Interrogator/TACAN Bench Test Set is an RF signal simulator that provides support for AIMS Mark XIIA transponders and interrogators. It operates under remote control from a computer or ATE system and provides versatile signal generation and measurement capability of Mark XIIA system signals in bench and over-the-air applications.

This IFF-45TS kit (EDMO# 138553) includes a laptop with a specific GUI interface for IFF Mode 4 testing.

Features

  • MK XIIA AIMS certified for Level 1 and Level 2
  • Accommodates DOD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77)
  • Dual I/O for diversity testing of transponders or SUM/DIFFERENCE on interrogators
  • Separate connections for direct or over-the-air testing
  • Software defined radio design allows waveform flexibility and future growth potential
  • Dual signal generator design allows coordinated signal production for interference and echo testing
  • Remote interfaces consist of RS-232, Ethernet and GPIB
  • GUI allows easy access to test features
  • Industry wide use in development and end item testing of transponders and interrogatorsADS-B Out (DO-260B) test capability

Product Codes

  • Mfr Part No
    138553
