F-16 IFF Coupler Kit

VIAVI

Call For Pricing

Available to order

EDMO # 140600

MFR Part # 140600

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

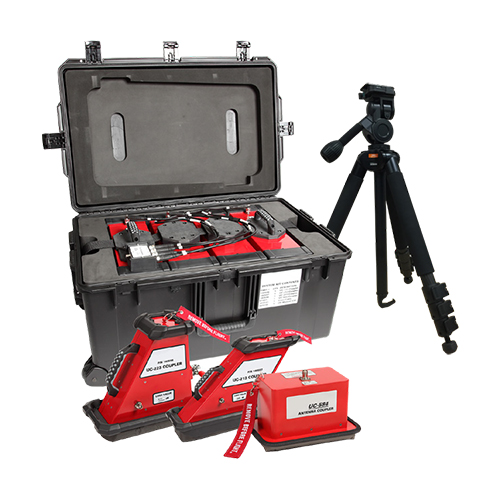

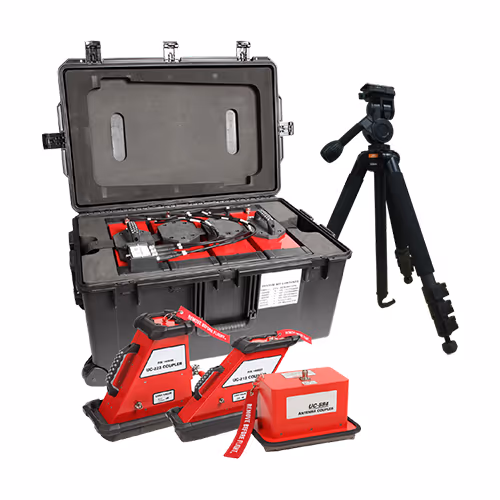

The F-16 IFF Coupler Kit solves the problem of over-the-air testing resulting in unreliable radiated power and transponder minimum trigger level testing in multi-path ramp and hangar environments. This kit also provides isolated IFF Interrogator and Transponder testing to eliminate the need for DD-1494 frequency authorization. The interrogator coupler mounts over the aircrafts’ four element interrogator antenna array. The transponder coupler mounts over top and bottom transponder antennas.

Version (EDMO#140600) includes: 140596 UC-113 Antenna Coupler, 140597 UC-213 Antenna Coupler, 140598 UC-223 Antenna Coupler, 87431 UC-584 L-Band Coupler, 141981 20 ft Coaxial Cable, 138331 Tripod, 141228 Transit Case, and 141318 Operation Manual.

Features

Interrogator coupler mounts over the aircrafts’ four element interrogator antenna array
Transponder coupler mounts over top and bottom transponder antennas
Interrogator coupler kit supports all blocks of F-16 aircraft
Transponder coupler kit supports all F-16 blocks (except F-16A/B, blocks 10/20, new kit coming soon)
Interfaces with most IFF ramp test equipment
EMI gasketing eliminates stray transmissions and interference

Specifications

Weight:

60 lbs (27.2 kg)
Dimensions:

31.3 x 20.4 x 15.5 in (79.5 x 51.8 x 39.4 cm)
Operating Temp:

-40° to 131° F ( -40° to 55° C)
Storage Temp:

-40° to 185° F ( -40° to 85° C)
Frequency:

1030 and 1090 MHz
Coupler Loss:

UC-113: 12.4 dB typical UC-213/UC-223: 5.0 dB typical UC-584: 0.6 dB typical
Isolation:

> 20 dB typical
VSWR:

< 2.5:1
Connector:

TNC Female
