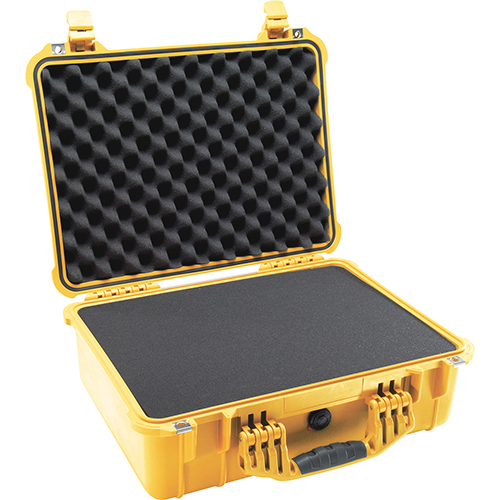

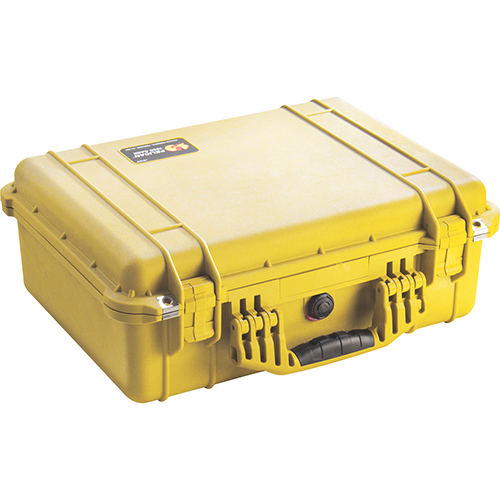

1520 Protector Case | Yellow, Includes Foam


PELICAN PRODUCTS

EDMO#: 1520Y

MFR#: 1520-000-240

Description

The 1520 Protector case is designed with rugged construction and built to protect even the most sensitive equipment while traveling to the harshest environments. Also, an automatic pressure equalization value is allows for easier opening at any altitude.

Features

  • Interior: 18.1 x 12.9 x 6.7 inch
  • Pick N Pluck™ with convoluted lid foam
  • Watertight, crushproof, and dust-proof
  • Open cell core with solid wall design
  • Comfortable rubber over-molded handle
  • Easy open Double Throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic Pressure Equalization Valve
  • O-ring seal

Specifications

Weight:
9.35 lb (4.2 kg), with foam
8.29 lb (3.8 kg), no foam

Dimensions:
Interior: 18.06 x 12.89 x 6.72 in (45.9 x 32.7 x 17.1 cm)
Exterior: 19.78 x 15.77 x 7.41 in (50.2 x 40.1 x 18.8 cm)

Lid Depth:
1.79 in (4.5 cm)

Bottom Depth:
4.93 in (12.5 cm)

Total Depth:
6.72 in (17.1 cm)

Internal Volume:
0.91 ft³ (0.026 m³)

Padlock Hole Diameter:
5/16 in (8 mm)

Buoyancy:
63 lb (28.6 kg)

Body Material:
Polypropylene

Latch Material:
ABS

O-ring:
polymer

Foam Material:
1.3 lb polyurethane

Temperature Range:
-40°F to 210°F (-40°C to 99°C)

Product Codes

Mfr Part No :

1520-000-240

ECCN :

EAR99

SCHEDULE B CODE :

3923.10.0000
