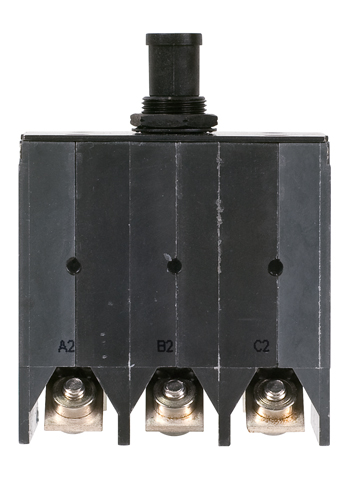

15TC30 Series Circuit Breaker | 50 Amp Rating

Select an option

KLIXON

Call For Pricing

Available to order

EDMO # 15TC30-50

MFR Part # 15TC30-50

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The KLIXON® 15TC30 series circuit breaker was designed to meet the package size and performance requirements of inactive military standard MS90351 in the 20 to 50 amp range. This lightweight, three-phase, high performance, non-ambient temperature compensated circuit breaker is well suited for aircraft, avionics and electrical systems. The 15TC30 series features a trip-free design, which will trip open on an overload, even when manually held closed.

Includes hardware.

Features

This 15TC30 series circuit breaker (EDMO# 15TC30-50) is rated for 50 amps.
Light weight
Non-ambient compensated
Three–phase
Trip–free design
Current rating: 20 to 50 amps
High performance
Typical use: Aircraft, avionics and electronic systems

Specifications

Weight:

0.386 lb (175 g), maximum 0.287 lb (130 g), nominal
Dimensions:

55 x 34 x 54 mm, maximum
Current Rating:

50 amps
Vibration:

CURVE 'J' OF EUROCAE ED-14B, 3 G'S, 2000 HZ
Mechanical Shock:

50G
Corrosion:

salt spray 48 hours
Humidity:

48 hours
Endurance:

2500 cycles: 115 VAC, 400 Hz inductive 5000 cycles: mechanical, no load
