9-Position Cable to Cable Connector | #20 contact size, #1 D-Sub shell size

Product Description

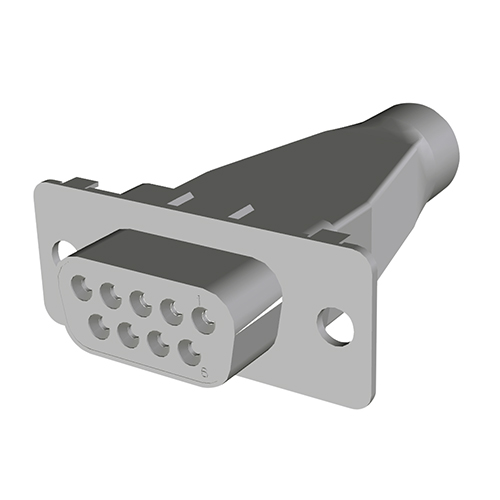

This connector to connector (EDMO# 1658646-1) receptacle features nine connector positions housed inside a steel shell.

Specifications

• Dimensions:
  4.19 — 11.56 mm (cable insolation diameter)
• Connector/Housing Type:
  Receptacle with full meter shell
• Connector System:
  Cable to Cable
• Number of Positions:
  9
• D-sub shell size:
  1
• D-sub contact size:
  20
• Insert Material:
  Glass filled nylon/polyester
• Shield Material:
  Steel
• Shell Material:
  Steel
• Shield Plating Material:
  Tin
• Shell Plating Material:
  Tin over copper
• Temperature
  : -67°F to 221°F (-55°C to 105°C)

Product Codes

• Mfr Part No
  1658646-1

Documentation

• 1658646-1 Product Drawing.pdf
