M27500-16TE3T14 Extruded ETFE Tefzel Wire | 16 AWG, 3 Conductor
HELISTRAND
EDMO#: 16TE3T14
MFR#: M27500-16TE3T14
Description
SAE AS22759 wire is a fluoropolymer–insulated, single-conductor wire offering excellent performance for a variety of military aerospace and commercial applications. It has high performance and reliability in severe wind and moisture prone (SWAMP) zones such as engine nacelles as well as areas requiring overload stability, low smoke emission and fire resistance, such as aircraft cabins.
M27500-16TE3T14 meets SAE AS22759/16 specifications and is designed for aerospace applications for commercial and military aircraft. It has a stranded tin-plated, copper conductor, Extruded ETFE dielectric, a rating of 600 volts and 150°C.

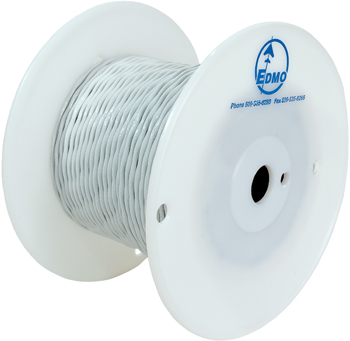

This M27500-16TE3T14 extruded ETFE tefzel wire (EDMO# 16TE3T14) has three, tin-plated 16 AWG conductors with extruded ETFE insolation, a 150°C rating. Colored white.
Features
- 600 volt rating
- 150°C temperature rating
- Excellent thermal stability
- High reliability
- High break strength and flex life
- High abrasion resistance
Specifications
AWG Size:
16
Conductor Stranding:
19/29
Number of Strands:
19
Strand Size:
29
Numbers of Conductors:
3
Outside Diameter:
0.0790 in, nominal
Conductor Material:
Tin-plated copper
Insulation Material:
Extruded Ethylene Tetrafluoroethylene (ETFE)
Shield:
Overall braid shield
Shield Material:
Tinned copper braid
Shield coverage:
85%
Jacket Material:
Extruded Ethylene Tetrafluoroethylene (ETFE)
Jacket Color:
White
Weight Approx:
43 lb/MFT
Operating Temperature:
150°C, maximum
Voltage:
600 volts
NEMA Type:
WC 27500
Mil-Spec:
M27500/16
Product Codes
Mfr Part No :
M27500-16TE3T14
MIL SPEC :
M27500-16TE3T14
ECCN :
EAR99
MIL SPEC :
M27500-16TE3T14
SCHEDULE B CODE :
8544.11.0050
