1811D Pitot Static Test Set | 1811D-405

BARFIELD

Call For Pricing

Available to order

EDMO # 1811D-405

MFR Part # 101-00164-405

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

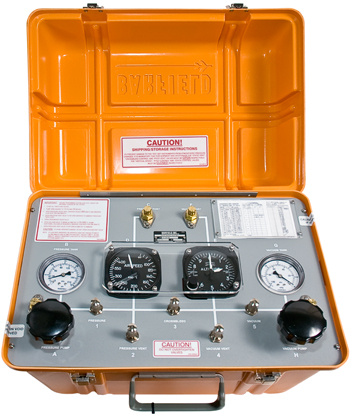

The Barfield 1811D is a, portable, self-contained field tester. It is ideal for leak testing aircraft pitot and static systems or on-board testing of altimeters and airspeed indicators. The tester uses two analog or digital instruments (Altimeter and Airspeed) to perform aircraft leak tests or instrument calibration checks. All legacy 1811 series testers are configured with hand pumps and external pressure ports for supplying the necessary pressure and vacuum needed for on-board testing.

Version 1811D-405 has an operating range of 60-420 kts and 35k feet.

Features

Test set includes:
(2) 25-ft hoses
(1) Pitot mast adapter
(1) 2423F static port adapter kit
Features:
Ideal for flightline calibration checks and troubleshooting
Performs precision Pitot-Static leak tests
Two-instrument combination with optional ranges
Correction cards for all analog instruments
Fully portable and self-contained (No electric or external pressure sources needed)
Lightweight plastic case for portability
Analog instruments contain two indications (altitude, airspeed)
