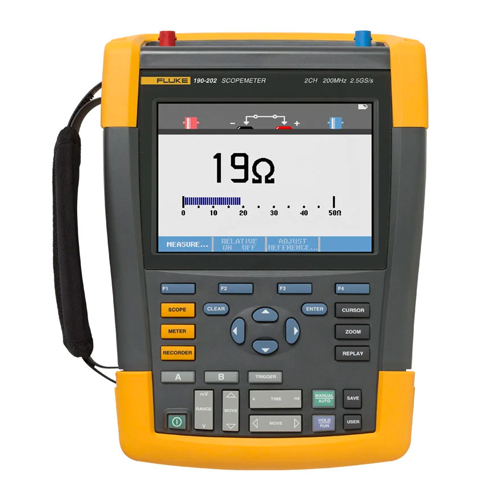

Fluke 190-202 ScopeMeter® Test Tool | 200 MHz, 2 Channel

FLUKE

Call For Pricing

Available to order

EDMO # 190-202/AM

MFR Part # FLUKE 190-202-III

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Fluke ScopeMeter® 190-202 combines the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

Features

Included Accessories:
VPS410 Voltage Probe Sets (one red, one blue)
TL175 TwistGuard™ safety designed Test Lead Set (red and black)
BC190 Battery Charger/mains Adapter
BP290 2400 mAh Li-ion Battery
Hand strap (affixed to instrument)
Hangstrap
Multi-Language User Manuals on CD-Rom
FlukeView ScopeMeter® demo package (restricted functionality)
USB Interface Cable
Features:
Two electrically isolated inputs
CAT III 1000V / CAT IV 600V safety rated
200 MHz bandwidth model
2.5 GS/s
Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
Dedicated 5000 Count digital multimeter
Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
ScopeRecord roll mode, capture waveform sample data for up to 48 hours
TrendPlot, trend measurement readings for up to 22 days
Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
IP-51 rated for dust and drip proof to withstand harsh environments
Isolated USB ports for memory devices and PC connectivity
Li-Ion battery for extended operating timespan
Easy-access battery door to make it easy to swap batteries
A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock

Specifications

Weight:

2.2 kg
Dimensions:

270 x 190 x 70 mm
Bandwidth:

200 MHz
Number of channels:

200 MHz: 2 channels
Real-time sample rate:

2.5 GS/s
Inputs:

2 scope plus DMM input
Independently floating isolated inputs:

Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
Timebase range:

2 ns - 2 min/div
Input sensitivity:

2 mV-100 V/div
Memory:

2 Channel Screen + Setup: 30 Recording: 10
Display:

153 mm full color LCD with fast update rate
Operating temperature:

0°C to 40°C Including Batteries 0°C to 50°C Excluding Batteries
Storage Temperature:

-20°C to +60°C
Operating altitude:

Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V
Electrical safety:

1,000 V CAT III/600V CAT IV (EN61010-1)
Li-Ion battery:

BP290 2400 mAh battery up to 4 Hours included standard
Warranty:

Three years on main instrument, one year on accessories
