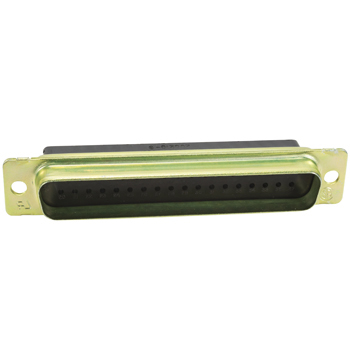

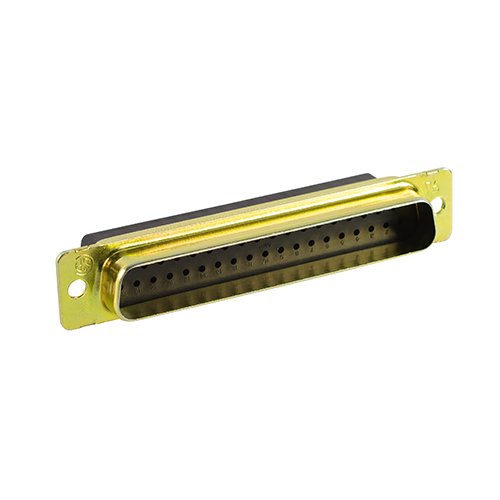

HDP-20 Crimp Snap-In Standard Connector | 37-pin Plug, #4 Shell Size

D SUB CONNECTOR/Male, 37 position, 2 row, wire mount, crimp. ROHS compliant.
D SUB CONNECTOR/Male, 37 position, 2 row, wire mount, crimp. ROHS compliant.

TE CONNECTIVITY

EDMO#: 205210-8

MFR#: 205210-8

Tariff fee may apply

Tariff Warning Icon

Description

HDP-20 crimp style snap-in D-sub miniature connectors are offered in a variety of contact positions from 9 to 50 pins. They feature tin or zinc plated shells with or without grounding indents while allowing loading of only the number of contacts being used.


This D-Sub  miniature connector (EDMO# 205210-8) features a 37-position connector in a #4 shell size.

Features

  • Shell sizes available in wide variety of contact positions
  • Intermatable with any size 20 D-Sub miniature connector conforming to MIL-C-24308
  • Zinc-plated, steel shell with thermoplastic insert
  • UL 4V-0 rated

Specifications

Dimensions:
2.729 x 0.494 in

Connector:
standard D-Sub Connectors

Shell Size:
4(C)

Contact Type:
Pin (male)

Contact Material:
Nylon

Number of Positions:
37, 2-rows

Insert Arrangement:
C37

Mounting Holes:
0.120 in (standard)

Mount Style:
Wire

Shell Material:
Zinc-plated, steel

Termination Style:
crimp

Product Codes

Mfr Part No :

205210-8

CSA :

LR1088108, LR7189-207

ECCN :

EAR99

ROHS :

YES

SCHEDULE B CODE :

8536.90.4000

UL :

E28476, E81956
