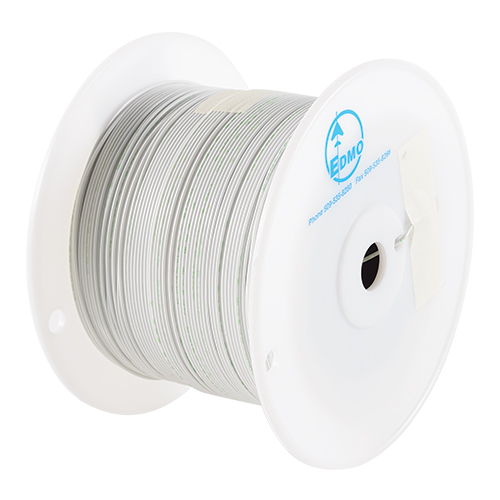

M22759/8 Extruded ETFE Tefzel Wire | 20 AWG, White

Product Description

The M22759/8-20 is a reliable wire designed for various applications, featuring a 20 AWG size with an approximate weight of 8.10 pounds per thousand feet. It is constructed with a conductor made of nickel-plated copper and a stranding configuration of 19 strands over 32. The wire is insulated with mineral-filled polytetrafluoroethylene (PTFE), ensuring excellent thermal and electrical properties. Compliant with Mil-Spec M22759/8 and SAE Spec AS22759/8, it has a maximum outer diameter of 0.084 inches and a minimum of 0.080 inches. This wire can operate in a wide temperature range, from -55°C to 260°C, making it suitable for various demanding applications. With a voltage rating of 600, the M22759/8-20 is a versatile and robust choice for electrical and industrial settings where reliable performance is crucial.

This M22759/8 tefzel hook up wire (EDMO# 20G/8-9) has a tin-plated copper, 20 AWG conductor with extruded ETFE insolation, and colored white.

Specifications

• Weight:
  8.1 lb/mft
• Max O.D.:
  0.084 in
• Min O.D.:
  0.08 in
• Wire Size:
  20 AWG
• Number of Conductors:
  1
• Number of Strands:
  19
• Conductor Material:
  Nickel-Plated Copper
• Conductor Stranding:
  19/32 in
• Nominal Diameter of Conductors:
  0.038 in
• Strand Size:
  32
• Voltage Rating:
  600 V
• Insulation Material:
  Mineral Filled Polytetrafluoroethylene (PTFE)
• Jacket Material:
  Mineral Filled Polytetrafluoroethylene (PTFE)
• M27500 Component:
  TA
• Temperature Range:
  -55ºC to 260ºC
• Mil-Spec:
  M22759/8
• SAE Spec
  AS22759/8

Product Codes

• Mfr Part No
  M22759/8-20-9
• MIL SPEC
  M22759/8-20-9
• MIL SPEC
  M22759/8-20-9
