TC-201A TCAS/Transponder Antenna Coupler | Coupler Only

TC-201A TCAS/Transponder Antenna Coupler | Coupler Only

VIAVI

Call For Pricing
Available to order
EDMO # 22130799
MFR Part # 22130799
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

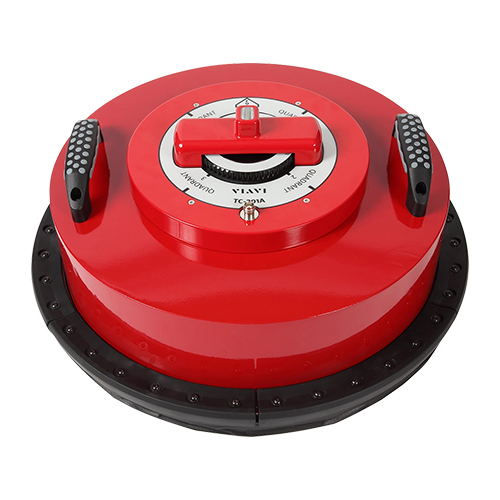

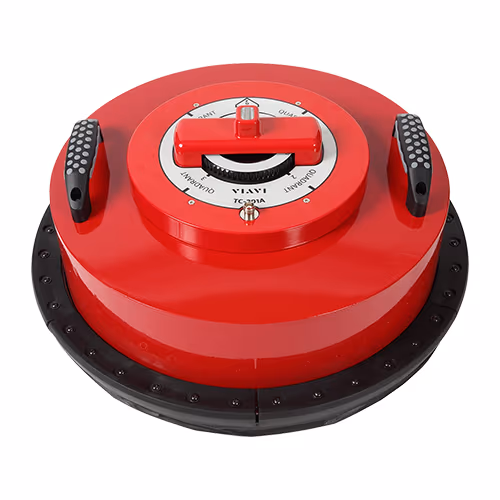

The VIAVI TC-201 Antenna Coupler is used on TCAS and combined TCAS and transponder directional antennas, to shield the RF signal during testing of the TCAS or transponder system. The TC-201, when used with the AVX-10K, IFR6000, IFR6015 or APM-424(V)5, supports maintenance testing in the airborne condition while working to reduce interference with air traffic control or nearby aircraft.

This TC-201 antenna coupler (EDMO# 22130799) only includes the TC-201A coupler.

Features

  • Accommodates both phase and amplitude
  • type antennas
  • Reliable, FAR Part 43, Appendix F, ERP and MTL
  • testing in high multi-path environments
  • Provides >20 dB of isolation
  • Provides shielding for all transponder and
  • ADS-B performance testing
  • Lower antenna adjustable support pole
  • Perform four-quadrant testing by simply
  • rotating the bearing selector dial
  • TCAS bearing accuracy Reduces interference with air traffic control
  • and nearby aircraft
  • High level of measurement repeatability is
  • achieved, saving test time
  • Tests all quadrants of directional TCAS or TCAS/Transponder antennas
  • No need to achieve line-of-sight with the
  • antenna under test
  • Eliminates the need for DD-1494 Frequency
  • Authorization
  • Universal design allows coupler to be used
  • with any suitable TCAS/transponder test set

Specifications

  • Weight:
    11 lbs (4.9 kg)
  • Dimensions:
    19 in diameter (48.26 cm)
  • Frequency:
    1030 MHz, 1090 MHz
  • Return Loss:
    > 9 dB
  • Insertion Loss:
    15.5 dB typical
  • Repeatability:
  • Isolation:
    > 20 dB
  • Bearing Accuracy:
    ± 18º max,
  • Connector:
    Female

Related Products

Product Codes

  • Mfr Part No
    22130799
  • SCHEDULE B CODE
    9030.90.4000
