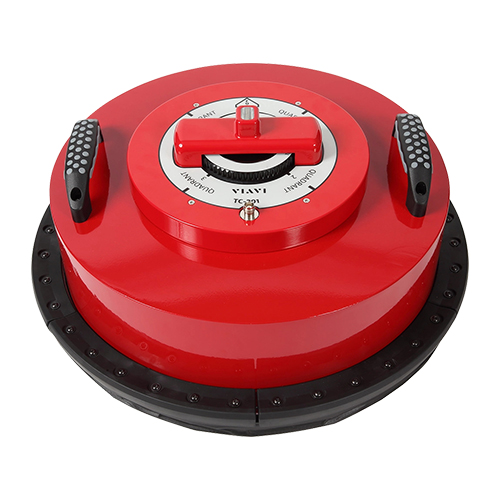

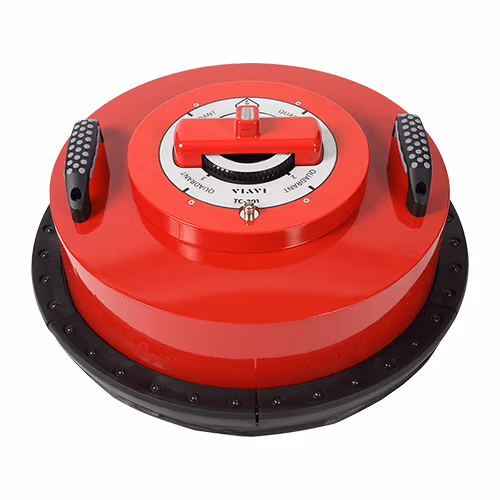

TC-201B TCAS/Transponder Antenna Coupler | Coupler Only

VIAVI

Call For Pricing

Available to order

EDMO # 22163085

MFR Part # 22163085

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The VIAVI TC-201 Antenna Coupler is used on TCAS and combined TCAS and transponder directional antennas, to shield the RF signal during testing of the TCAS or transponder system. The TC-201, when used with the AVX-10K, IFR6000, IFR6015 or APM-424(V)5, supports maintenance testing in the airborne condition while working to reduce interference with air traffic control or nearby aircraft.

This TC-201 antenna coupler (EDMO# 22163085) only includes the TC-201B coupler.

Features

Accommodates both phase and amplitude type antennas
Reliable, FAR Part 43, Appendix F, ERP and MTL testing in high multi-path environments
Provides >20 dB of isolation
Provides shielding for all transponder and ADS-B performance testing
Lower antenna adjustable support pole
Perform four-quadrant testing by simply rotating the bearing selector dial
TCAS bearing accuracy Reduces interference with air traffic control and nearby aircraft
High level of measurement repeatability is achieved, saving test time
Tests all quadrants of directional TCAS or TCAS/Transponder antennas
No need to achieve line-of-sight with the antenna under test
Eliminates the need for DD-1494 Frequency Authorization
Universal design allows coupler to be used with any suitable TCAS/transponder test set
