Avionics 2000 Special Mission Display | 23 in.

AVIONICS 2000

Call For Pricing
A tariff fee of $660.00 EA may apply.
Available to order
EDMO # 230-SSHD
MFR Part # AV2K-230-SSHD
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

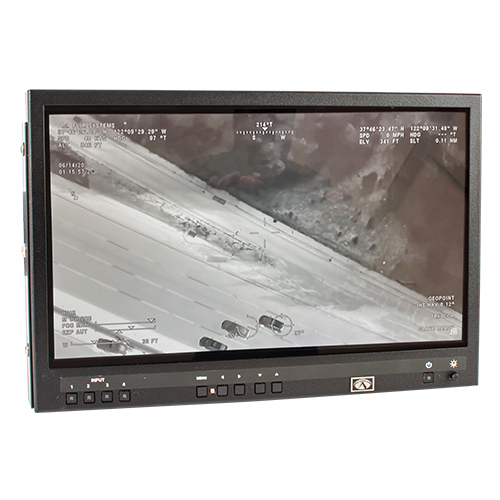

The Avionics 2000 Special Mission Display is a high-definition LCD monitor designed for diverse applications, such as high-stakes aerial missions for use by police, medical, and firefighting operations, and provides enhanced situational awareness and operational efficiency. The Special Mission Display is designed in-house and has a exceptional track record for reliability. The Avionics 2000 Special Mission Display is ideal for elevating mission capabilities with reliable advanced technology.

This Special Mission Display (EDMO# 230-SSHD) has a 23-inch screen.

Features

  • 3G/HD/SD SDI, HDMI, and DPI inputs support up to 1920×1080 resolution with a vertical refresh rate of 60Hz
  • Designed for rugged environments with low EMI/EMC compatibility
  • Reliable voltage range from 11–32VDC
  • Crystal-clear visibility with 1000 nits brightness
  • Photocell brightness control and NVIS friendly backlighting
  • Picture-in-Picture and Picture-by-Picture video display modes
  • Extreme wide-viewing angles (178° H/V) for consistent image quality
  • High contrast ratio (1000:1) and 16.2 million vibrant colors
  • RS-232 or USB Touch Screen Controller (P.CAP Ten Touch)
  • LED backlight with 50,000 hours lifespan for extended reliability

Specifications

  • Size:
    23 in.
  • LCD Panel Brightness:
    1000 nits
  • Viewing Angles:
    178° horizontally and vertically
  • Resolution:
    1920 x 1080
  • Refresh Rate:
    60 Hz
  • Aspect Ratios:
    16:9, 4:3, 5:4, and 1:1
  • Response Time:
    25 ms
  • Video Display Modes:
    Picture-in-Picture; Picture-by-Picture

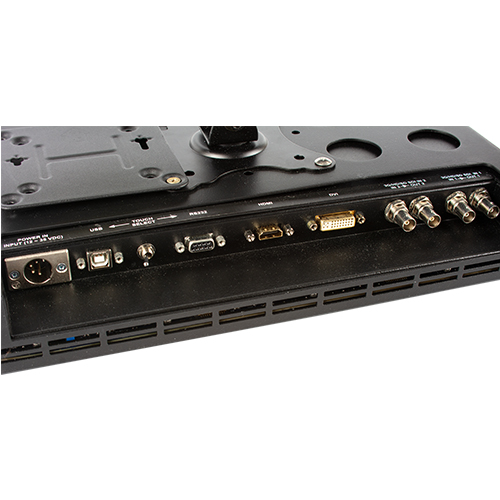

  • Video Inputs:
    3G/HD/SD SDI, HDMI, and DPI
  • Color Temperature Options:
    User, VAR, 9300K, 7500K, 6500K, and 5000K
  • DC Connector:
    D4M (XLR4-M) locking connector
  • Input Voltage Range:
    11–32 VDC
  • LED Backlight Lifespan:
    50,000 hours
  • USB and RS232 Input:
    For touchscreen drive

Related Products

Product Codes

  • Mfr Part No
    AV2K-230-SSHD
  • SCHEDULE B CODE
    8807.30.0060
