Product Description

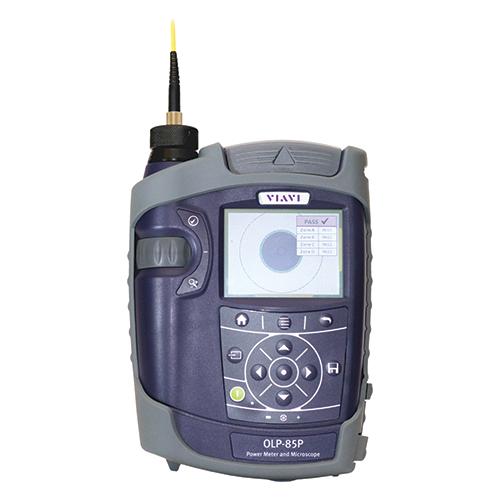

The SmartClass™ Fiber OLP-85 and -85P combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. With a 100 dB dynamic range, the OLP-85 and -85P handheld optical power meters are professional, versatile, and compact instruments perfect for any fiber-optic network power or loss test applications. Their high accuracy over the entire range means that the OLP-85 and -85P perfectly fit applications where low power or very high power needs to be measured.

In addition to providing a full day of battery-operated field use, the SmartClass Fiber OLP-85 and -85P are perfect for fixed installations in central offices, production environments, and for laboratory workbenches because they can operate via mains or be remotely controlled via USB 2.0 and Ethernet.

The OLP-85 and -85P are compatible with the P5000i digital analysis microscope so users can check fiber end-face quality and get pass/fail acceptance results with one button push. The OLP-85P features an integrated patch-cord microscope (PCM) for added value and improved workflow efficiency.

Features

  • Complete jobs faster, correctly, and on time—the first time with uniquely integrated fiber inspection and test with auto pass/fail analysis
  • Battery-operated, field-portable optical power meters with an 800 to 1700 nm measurement wavelength range and high accuracy over an ultra-wide 100 dB dynamic range
  • 3.5-in color touch screen with integrated stylus
  • Automated pass/fail fiber inspection analysis with the optional P5000i microscope, also available with integrated PCM
  • Individual threshold settings for power and loss pass/fail analysis
  • Onboard fiber inspection and test results storage with time stamp
  • Data transfer and remote control via USB, Ethernet, or optional WiFi connection
  • Auto-lambda and multi-lambda test functions communicate with VIAVI light sources
  • In-service loss test option
  • Rugged, weatherproof design
  • SmartPowerOn functionality for instantaneous power-on

Specifications

  • Weight:
    1.85 lbs (850 g)
  • Dimensions:
    8.2 x 6.0 x 2.5 in (208 x 153 x 64 mm)
  • Photo Diode:
    InGaAs (Coated)
  • Spectral Range:
    Broadband (800–1700 nm)
  • Wavelength Setting:
    800–1700 nm, step size 1 nm
  • Resolution:
    0.01 dB, 0.001 µW
  • Measurement Range for Power Level:
    -75dBm to +26dBm
  • Max Power Level:
    +30 dBm
  • Measurement Uncertainty:
    ± 0.15 dB (intrinsic) 850, 980 nm: ± 0.35 dB 1310, 1490, 1550 nm: ± 0.25 dB 1625 nm: ± 0.35 dB
  • Linearity:
    ± 0.06 dB
  • Number of Calibrated Wavelengths:
    6 (850, 980, 1310, 1490, 1550, 1625 nm)
  • Tone Detection:
    CW, 270 Hz, 1 kHz, 2 kHz
  • Auto Functions:
    Auto-λ / Multi-λ
  • Optical Connectors:
    Configurable
  • Display:
    High contrast 3.5” color LCD touch screen (4:3 ration)
  • Fiber Inspection:
    Via external P-5000i or via patch cord microscope (P-variants)
  • Data Storage:
    10,000 results
  • Data Download Capability:
    Via USB interface
  • Remote Control Capability:
    Via USB or Ethernet
  • Electrical Interfaces:
    2x USB-A, 1x micro-USB, 1x Ethernet
  • Wireless Interfaces:
    WiFi or Bluetooth
  • Dry Batteries:
    8x Mignon (AA) Alkaline 1.5 V
  • Battery Pack:
    1x Li-ion pack 3.7 V
  • AC Operation:
    Via Universal Power Adapter
  • Operating Time:
    12 hrs. (OLP) with the dry batteries
  • Operating Temperature:
    14 °F to 122°F ( -10 °C to 55°C)
  • Storage Temperature:
    -4 °F to 158°F ( -20 °C to 70°C)
  • EMI/ESD:
    CE compliant
  • Recommended Calibration Interval:
    3 years
