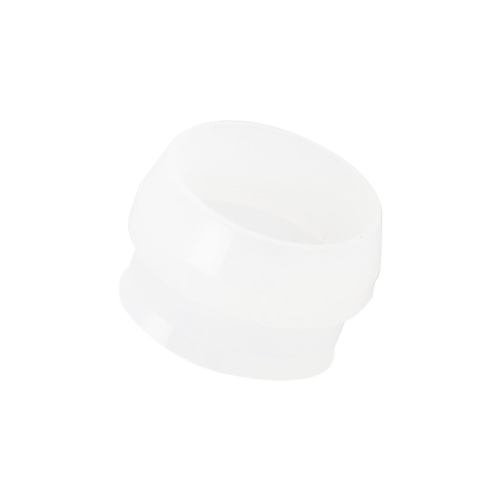

NYLO-Seal Insert Sleeve | For 3/8-inch Tubing

SEAL PLASTICS INC

Call For Pricing

Available to order

EDMO # 260P-06

MFR Part # 260P-06

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

NYLO-Seal Nylon tube fittings have excellent resistance to acids, oils and greases. Installation time is reduced with NYLO-Seal fittings when compared to regular compression or flare fittings. When being tightened, stress is relieved as the nut revolves around the sleeve which prevents torque from being transmitted to the tubing. These fittings can continuously operate at temperatures of 200°F and intermittently at temperature as high as 250°F. NYLO-Seal Nylon fittings are excellent for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications.

Features

For use with pitot static tubing
0.375 inch outside diameter
Nylon material
Secure fit
Anti-vibration
Excellent resistance to chemicals
Reduces installation time
Eliminates stress on plastic tubing during installation
Exceptionally strong and resistant to abuse
Continual Operation at temperatures as high as 200°F
Couples most types of thermoplastic tubing
Designed for instrument, lubricant, air, hydrocarbon fuel, oil coolant, low pressure hydraulic lines, laboratory, and chemical applications

Specifications

Tube Size: 3/8 in
Maximum Working Pressure: 250 PSI
Operating temperature: 200ºF continuous 250ºF intermittently
Materials: Molded Nylon Bodies and Nuts, and Acetal Copolymer Sleeves
Compatible Tubing: NYLO-Seal fittings can be used to couple to most types of thermo plastic tubing
