MS27212-1 Terminal Block | 4 studs

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 27212-1-4

MFR Part # MS27212-1-4

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Terminal blocks are molded in high quality, dimensionally stable DAP thermoset material which provides excellent dielectric strength – even at temperatures and in moist environments. Then can be cut to length to accommodate any job.

This terminal block (EDMO# 27212-1-4) has four mounting studs with 6/32-inch UNF-2A/20 thread size.

Features

Constructed of diallyl isophalate plastic (per Federal standard GDI-20F and MIL-M-14)
425°F to 500°F maximum operating temperature

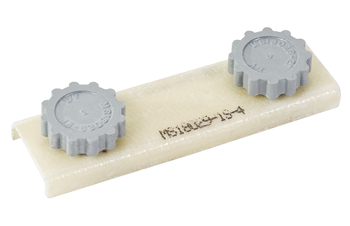

Compatible with MS180029 terminal block covers and MS25226 bus bars

Also Purchased

Specifications

Number of Studs:

4
Stud Spacing:

0.594 in
Stud Thread Size/Max:

6/32-inch UNF-2A/20

Product Codes

Mfr Part No

MS27212-1-4
MIL SPEC

MS27212-1-4
ECCN

EAR99
MIL SPEC

MS27212-1-4
SCHEDULE B CODE

8536.69.4030
